Accurate Performance, Powerful Range, Compact size and winning features

Introduction

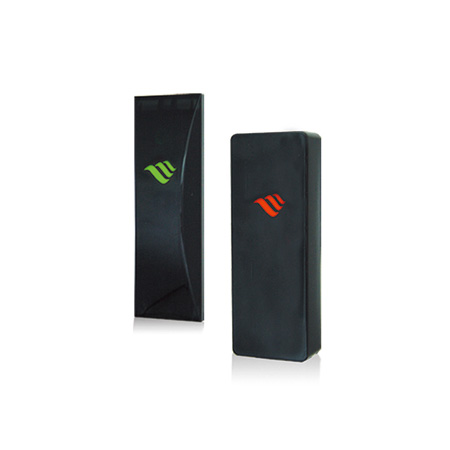

UR110 is conceived as Your Reader, a stylish and reliable proximity reader with piano finish housing that seamlessly integrates into an intelligent building. For those high end projects UR110 is fulfilling with excellent performance, flexible appearance by changeable housing, customised logo, configurable LED colours and buzzer sound. It has wide applications in the area of Access Control and its waterproof design makes it a great all weather outdoor reader. UR110 has operating voltage range  perfect for Access Control Applications and is configurable to output most of the common interface formats as required – Wiegand, Magstripe (Clock/Data), RS232 or RS485.

Features:
6 selectable colours for LED indications distinct for read and standby modes
Pre-programmable 3-in-1 interface outputs according to ABA TK2, RS232 (UART) or Wiegand characteristics.
Ease of installation cuts cabling work
Quality piano finish meeting high end demand in intelligent buildings

Specification

Power Requirements	7.5-12 Volts required DC at 75mA Typical with at 12V supply.  A linear Regulator is recommended.
Interface	Wiegand 26bits (default), Magstripe 9.6K Baud Serial ASCII ( RS232) or RS485 ( Wiegand & RS232 interface baud rates are configurable)
Typical Maximum Read	Up to 9 cm
Frequency	125KHz standard, ASK
Transponder	Ready only ( For unique Serial Number/Unique Identifier) Chip type: EM H4001\H4002 compatible ID code: 10 digits in Hex; 125KHz ASK; 64 bits, Manchester coding
Audio/Visual Indication	Internal LED and Buzzer
Additional	Controls 2 Digital input and 2 Digit output
Dimensions	UR110 10 x 3.2 x 1.6 cm UR115   8 x 3.2 x 1.6 cm
Operating Temperature	-10 to 60 Deg C
