SMA Cable
| Item No.: | RF HIGH FREQUENCY RF JUMPER SMA Connector |
Supplier Details
Country: Taiwan
City: North Dist., Hsinchu City 300
Address: No. 41, Aly. 13, Ln. 323, Sec. 2, Dongda Rd.
TEL: +886-3-5336733
Fax: +886-3-5336522
Online Showroom:
35 Products

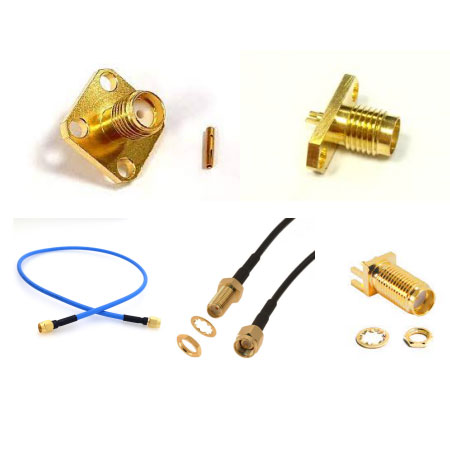

SMA FOR RG58U CABLE / SMA FOR RG174U CABLE / SMA FOR LMR400 CABLE / SMA FOR H155 CABLE / SMA FOR RG402U CABLE / SMA FOR 1.13 CABLE
The interface dimensions for SMA connectors are listed in the US military regulation MIL-STD-348. SMA connectors use a 1/4 inch diameter threaded sleeve with 36 threads per inch.
The center pin of a standard polarity SMA male connector is surrounded by a cylinder with internal threads, and the center sleeve of a standard SMA female connector is surrounded by a cylinder with external threads. There are also reverse polarity ("RP") SMA connectors with interchangeable center pins and sleeves; browse RP products for a more comprehensive description.
Our high-quality SMA connectors are rated for up to 500 mating cycles, but to achieve this, the correct torque value must be used when connecting. Flats are also provided on the cable side of the connector assembly so that a second wrench can be used to prevent it from rotating and damaging the connector to the cable.
The interface dimensions for SMA connectors are listed in the US military regulation MIL-STD-348. SMA connectors use a 1/4 inch diameter threaded sleeve with 36 threads per inch.
The center pin of a standard polarity SMA male connector is surrounded by a cylinder with internal threads, and the center sleeve of a standard SMA female connector is surrounded by a cylinder with external threads. There are also reverse polarity ("RP") SMA connectors with interchangeable center pins and sleeves; browse RP products for a more comprehensive description.
Our high-quality SMA connectors are rated for up to 500 mating cycles, but to achieve this, the correct torque value must be used when connecting. Flats are also provided on the cable side of the connector assembly so that a second wrench can be used to prevent it from rotating and damaging the connector to the cable.
- Various RF cable options available：RG316 / RG174 / RG58 / RG178 / RG223 / RG402 etc..
- Various connector options available：SMA / SMB / MCXX / MCX / BNC / TNC.
- If you can't find the connector you need, please contact us.
