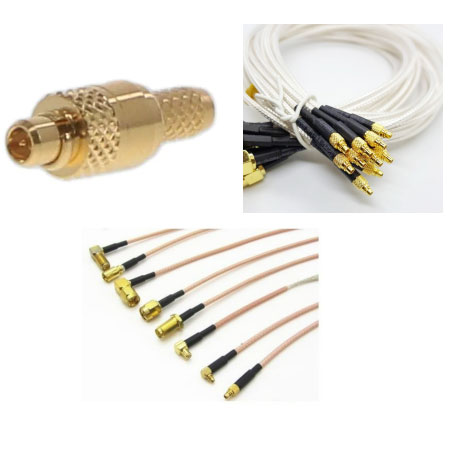

MMCX Cable
| Item No.: | MMCX CONNECTOR |
Supplier Details
Country: Taiwan
City: North Dist., Hsinchu City 300
Address: No. 41, Aly. 13, Ln. 323, Sec. 2, Dongda Rd.
TEL: +886-3-5336733
Fax: +886-3-5336522
Online Showroom:
35 Products
MMCX TO FOR RG-174U / MMCX STRAIGHT PLUG EDGE CARD MOUNT
MMCX PLUG PC BOARD MOUNT / MMCX STRAIGHT JACK PC BOARD MOUNT
MMCX STRAIGHT JACK EDGE CARD MOUNT
MMCX (miniature coaxial) connectors are coaxial RF connectors similar to MCXs, but smaller. They comply with the European CECC 22000 specification. MMCX connectors are rated for 500 mating cycles.
The connector has a locking spring mechanism that allows 360 degree rotation and typically has a 50 ohm impedance. They provide broadband capabilities from DC to 6 GHz.
MMCX connectors are most commonly found on Wi-Fi PCMCIA cards as antenna connectors, or as connectors for external GPS antennas on small devices such as PDAs or GPS receivers. They are also used by various brands of in-ear monitors to connect cables to individual headphones. This allows cables to be replaced or swapped.
MMCX PLUG PC BOARD MOUNT / MMCX STRAIGHT JACK PC BOARD MOUNT
MMCX STRAIGHT JACK EDGE CARD MOUNT
MMCX (miniature coaxial) connectors are coaxial RF connectors similar to MCXs, but smaller. They comply with the European CECC 22000 specification. MMCX connectors are rated for 500 mating cycles.
The connector has a locking spring mechanism that allows 360 degree rotation and typically has a 50 ohm impedance. They provide broadband capabilities from DC to 6 GHz.
MMCX connectors are most commonly found on Wi-Fi PCMCIA cards as antenna connectors, or as connectors for external GPS antennas on small devices such as PDAs or GPS receivers. They are also used by various brands of in-ear monitors to connect cables to individual headphones. This allows cables to be replaced or swapped.
- Various RF cable options available：RG316 / RG174 / RG58 / RG178 / RG223.
- Various connector options available：SMA / SMB / MCXX / MCX / BNC / TNC.
- If you can't find the connector you need, please contact us.
