BNC Cable
| Item No.: | RF high frequency radio frequency oscilloscope cab |
Supplier Details
Country: Taiwan
City: North Dist., Hsinchu City 300
Address: No. 41, Aly. 13, Ln. 323, Sec. 2, Dongda Rd.
TEL: +886-3-5336733
Fax: +886-3-5336522
Online Showroom:
35 Products

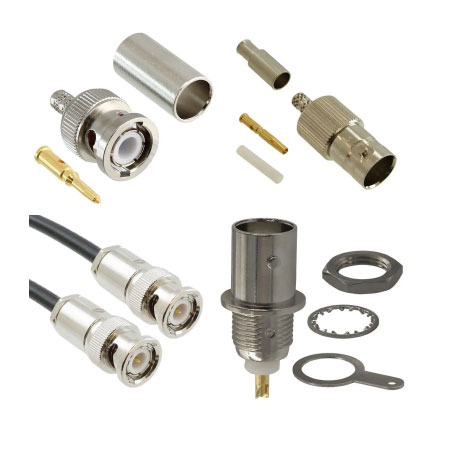

BNC STRAIGHT PLUG CLAMP FOR RG-58U / BNC STRAIGHT JACK CRIMP FOR RG-174U / BNC R/A PLUG CRIMP FOR RG-58U / BNC JACK BULKHEAD CRIMP FOR RG-174U / BNC STRAIGHT PLUG CRIMP FOR RG-174U / BNC JACK BULKHEAD CRIMP FOR RG-58U
BNC (Bayonet Neill-Concelman) connectors are miniature quick connect/disconnect RF connectors for coaxial cables. The interface specification for BNC and many other connectors is referenced in US Military Standard MIL-STD-348. It has two bayonet lugs on the female connector; full mating is achieved by a quarter turn of the connecting nut. BNC connectors are used with micro-to-subminiature coaxial cables in radio, television and other RF electronic equipment, test instruments and video signals.
BNC connectors are manufactured to match the cable characteristic impedance of 50 ohms or 75 ohms. They are typically used for frequencies below 4 GHz and voltages below 500 volts.
Typically, the male connector is installed on the cable and the female connector is installed on the panel on the device. Cable connectors are usually designed to be installed by crimping using special power or hand tools. Use a wire stripper, which strips the outer jacket, shield braid, and inner dielectric to the correct length in one operation.
BNC (Bayonet Neill-Concelman) connectors are miniature quick connect/disconnect RF connectors for coaxial cables. The interface specification for BNC and many other connectors is referenced in US Military Standard MIL-STD-348. It has two bayonet lugs on the female connector; full mating is achieved by a quarter turn of the connecting nut. BNC connectors are used with micro-to-subminiature coaxial cables in radio, television and other RF electronic equipment, test instruments and video signals.
BNC connectors are manufactured to match the cable characteristic impedance of 50 ohms or 75 ohms. They are typically used for frequencies below 4 GHz and voltages below 500 volts.
Typically, the male connector is installed on the cable and the female connector is installed on the panel on the device. Cable connectors are usually designed to be installed by crimping using special power or hand tools. Use a wire stripper, which strips the outer jacket, shield braid, and inner dielectric to the correct length in one operation.
- Various RF cable options available：RG316 / RG174 / RG58 / RG178 / RG223.
- Various connector options available：SMA / SMB / MCXX / MCX / BNC / TNC.
- If you can't find the connector you need, please contact us.
