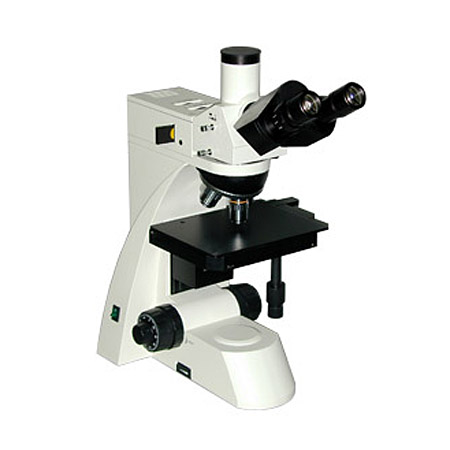

Reflected Light Metallurgical Microscope
| Item No.: | MJ33 |
Supplier Details
Country: China
City:
Address:
TEL: +--
Fax: +--
Online Showroom:
41 Products
Features
◆ Adopt infinity optical system and modularization function design.
◆ Long W.D bright or dark field plan objectives (no cover glass), the field of view is widely and clear.
◆ Wide-field plan eyepieces: field number Ф22mm.
◆ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
◆ Integrated polarization observation device, the polarizer can be circumrotated for 360°.
◆ The Epi- illumination is 12V 50W halogen lamp and the lamp box cover can be revolved, replacing lamp facility and safety. The transmitted illumination is 12V 30W halogen lamp and adding radiator.
Standard Configuration
◆ Adopt infinity optical system and modularization function design.
◆ Long W.D bright or dark field plan objectives (no cover glass), the field of view is widely and clear.
◆ Wide-field plan eyepieces: field number Ф22mm.
◆ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
◆ Integrated polarization observation device, the polarizer can be circumrotated for 360°.
◆ The Epi- illumination is 12V 50W halogen lamp and the lamp box cover can be revolved, replacing lamp facility and safety. The transmitted illumination is 12V 30W halogen lamp and adding radiator.
Standard Configuration
| Item | Specificaiton |
| Eyepiece | Wide field WF10X(field number:¦µ22mm) |
| Objective | Infinity plan achromatic bright or dark field with long work distance. (no cover glass) |
| PL L5X/0.12 B.D (Work distance):9.7 mm | |
| PL L10X/0.25 B.D (Work distance):9.3 mm | |
| PL L20X/0.40 B.D (Work distance):7.2 mm | |
| PL L40X/0.60 B.D (Work distance):3.0 mm | |
| Eyepieces tube | Trinocular, Inclination of 30˚, (Integrated analyzer and switching freely) |
| Epi- illumination system | 12V 50W halogen lamp, adjustable brightness |
| Integrated field diaphragm, aperture diaphragm and filter switching device. Push-pull type analyzer and polarizer | |
| Focus system | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm. |
| Nosepiece | Quintuple (Backward ball bearing inner locating) |
| Stage | Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm) |
| Transmitted illumination system | Abbe condenser NA.1.25 Rack & pinion adjustable |
| Blue filter and Ground glass | |
| Collector for illumination with halogen lamp (With field diaphragm ) | |
| 12V 30W halogen lamp, adjustable brightness |
Optional accessories
| Item | Specification |
| eyepiece | Dividing eyepiece(field number:¦µ22mm) 0.10mm/Div |
| Objective | Infinity plan achromatic bright or dark field objective with long W.D (no cover glass) |
| PL L50X/0.70B.D Work distace:2.50mm | |
| PL L60X/0.70 B.D Work distace:1.90 mm | |
| PL L80X/0.80B.D Work distace:1.25mm | |
| PL L100X/0.85B.D Work distace:0.22mm | |
| Filter (For transmitted) | Green filter |
| Yellow filter | |
| Camera | Mshot digital microscope camera |
