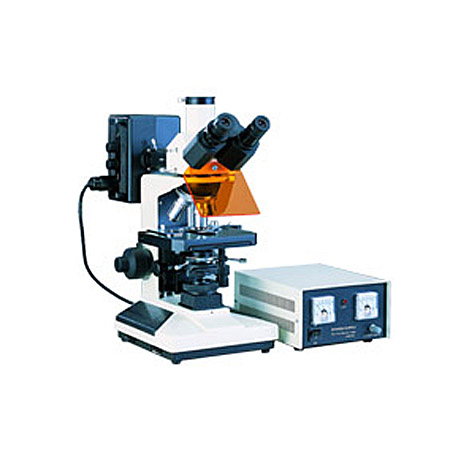

Reflected Fluorescence Microscope
| Item No.: | MF20 |
Features of MF20:
▲ Wide field eyepieces, plan achromatic objectives and fluorescence objectives. Field view widely and clear.
▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
▲ 6V 20W halogen lamp transmission illumination with brightness control. 100W high voltage mercury lamp, with outside power supply unit.
Standard Configuration
Model | MF20 |
Eyepiece | Wide field WF10X(¦µ20mm) |
Objective | Plan achromatic objectives PL 4X/0.10 |
Plan achromatic objectives PL 10X/0.25 | |
Plan achromatic objectives PL 40X/0.65(Spring) | |
Plan achromatic objectives PL 100X/1.25(Spring, oil) | |
Fluorescence objectives FL 25X/0.65 | |
Fluorescence objectives FL 40X/1.00 (Spring, Glycerin) | |
Eyepiece tube | Trinocular (Inclination of 30˚) |
Focus system | Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm. |
Nosepiece | Quadruple(Backward ball bearing inner locating) |
Stage | Double layer mechanical (Size:160mmX140mm, Move range: 75mmX50mm) |
Abbe condenser | N.A.1.25 Rack & pinion adjustable |
Filter | Blue filter |
Frosted filter | |
Collector | For halogen lamp |
Light source | 6V 20W Halogen lamp with brightness control |
Reflected fluorescence system | Mercury lamp house 100W/DC |
Power supply unit:AV:110V or 220V | |
Fluorescence filter system B exciton wavelength:420~485nm | |
Fluorescence filter system G exciton wavelength:460~550nm |
Optional accessories
Name | Sort/Technique parameter | |
Eyepiece | Wide field WF16X(¦µ11mm) | |
Dividing 10X(¦µ20mm),0.1mm/Div | ||
Objective | Plan achromatic objectives PL 5X/0.12 | |
Fluorescence objectives FL 100X/1.25 (Spring, Glycerin) | ||
Filter | Green filter | |
Yellow filter | ||
Fluorescence power supply | 100W fluorescence power supply(Wide voltage range and constant power and calculagraph) | |
Reflected fluorescence system | Fluorescence filter system UV exciton wavelength:330~400nm | |
Fluorescence filter system V exciton wavelength:395~415nm | ||
Phase contrast unit | Eyepiece | Centering telescope |
Objectives | Phase contrast plan achromatic 10X/0.25 PHP | |
Phase contrast plan achromatic 20X/0.40 PHP | ||
Phase contrast plan achromatic 40X/0.65 PHP(Spring) | ||
Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil) | ||
(PH-¢ñ) Turnplate phase contrast condenser | ||
(PH-¢ò) Turnplate phase contrast condenser | ||
Flashboard phase contrast condenser | ||
Pull board phase contrast condenser | ||
Digital camera | MD10/20/30/50/90 | |
MC15/20/30/50 | ||
Camera adapter | Canon, Nikon, Olympus SLR etc. | |
