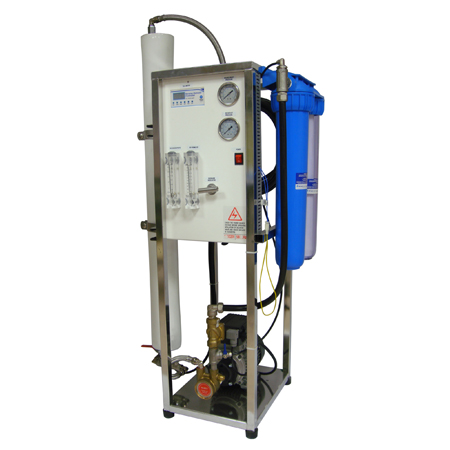

RD series Reverse Osmosis System
Product Overview
ROTEK compact commercial reverse osmosis system is a durable piece of equipment which, with proper care and maintenance will last for many years. RD series systems are part of a family of reverse osmosis units designed for operation with fresh and brackish feedwaters having TDS values below 2,000ppm. Models are available with permeate outputs of between 250 and 1000 litres/hr as shown in the specifications tables.
Product Features
* High pressure stainless steel membrane housing
* Low Energy TFC spiral membrane
* High pressure S/S braided flexible hose
* Rotary vane pump / anti-corrosion multistage pump
* Microprocessor controller with TDS readout
* Automatic flush with raw water
* Low feedwater pressure sensor
* Storage tank level sensor input
* Permeate and reject flow rotameters
* Adjustable pressure regulator valve
* Liquid filled pressure gauges (Filter Feed, RO Feed)
* Concentrate recycling valve
* Electro-polished stainless steel frame
Specifications
Feed Water Requirments
pH: 3.0 : 10.0
TDS: < 2,000 ppm (choose BW systems when exceed)
Turbidity: < 1.0 NTU (required pre-treatment when exceed)
SDI: < 5.0 (required pre-treatment when exceed)
Hardness: < 50 ppm (required pre-treatment when exceed)
Residual Chlorine: < 0.1 ppm (required pre-treatment when exceed)
Feed water quality, pressures and flow rates have a significant impact on the performance of any reverse osmosis system. To ensure reliable and consistent long-term performance, it is important to supply feed water having the minimum specifications detailed below. If your feed water supply is marginal, you should consider using a feed water break tank and booster pump to supply the system.
Product Overview
ROTEK compact commercial reverse osmosis system is a durable piece of equipment which, with proper care and maintenance will last for many years. RD series systems are part of a family of reverse osmosis units designed for operation with fresh and brackish feedwaters having TDS values below 2,000ppm. Models are available with permeate outputs of between 250 and 1000 litres/hr as shown in the specifications tables.
Product Features
* High pressure stainless steel membrane housing
* Low Energy TFC spiral membrane
* High pressure S/S braided flexible hose
* Rotary vane pump / anti-corrosion multistage pump
* Microprocessor controller with TDS readout
* Automatic flush with raw water
* Low feedwater pressure sensor
* Storage tank level sensor input
* Permeate and reject flow rotameters
* Adjustable pressure regulator valve
* Liquid filled pressure gauges (Filter Feed, RO Feed)
* Concentrate recycling valve
* Electro-polished stainless steel frame
Specifications
Specifications \ Models | RD 800 | RD 1500 | RD 3000 | RD 4500 | RD 6000 | |
Permeate Flow | GPD / LPH | 1500 / 250 | 1500 / 250 | 3000 / 500 | 4500 / 750 | 6000 / 1000 |
Module Qty & Size | (1), 4"x21" | (1), 4"x40" | (2), 4"x40" | (3), 4"x40" | (4), 4"x40" | |
Nominal Recovery | 50% | |||||
Motor (kw) | 0.37 | 0.75 | 2.25 | 2.25 | 2.25 | |
Weight (kg) | 43 | (1), 4"x40" | (2), 4"x40" | (3), 4"x40" | (4), 4"x40" | |
Dimension (mm) | 530 x 530 x 1150 |
Feed Water Requirments
pH: 3.0 : 10.0
TDS: < 2,000 ppm (choose BW systems when exceed)
Turbidity: < 1.0 NTU (required pre-treatment when exceed)
SDI: < 5.0 (required pre-treatment when exceed)
Hardness: < 50 ppm (required pre-treatment when exceed)
Residual Chlorine: < 0.1 ppm (required pre-treatment when exceed)
Feed water quality, pressures and flow rates have a significant impact on the performance of any reverse osmosis system. To ensure reliable and consistent long-term performance, it is important to supply feed water having the minimum specifications detailed below. If your feed water supply is marginal, you should consider using a feed water break tank and booster pump to supply the system.
