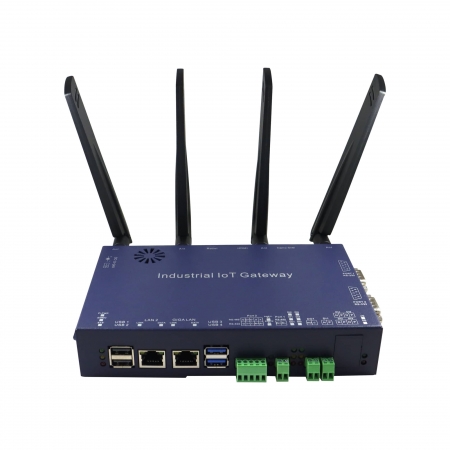

Raspberry Pi CM4 IoT Linux OS Programmable Control
| Item No.: | PiCM4 |
Supplier Details
Country: Taiwan
City: Kaohsiung
Address: 1F, 149 Xingzhong 1st Road
TEL: +886-7-2223185
Fax: +886-7-2230532
Online Showroom:
30 Products
www.atac.com.tw
https://www.atac.com.tw/5369/raspberry-pi-cm4-iot-linux-os-programmable-controller-with-dio/
sales@atac.com.tw
Features:
Built-in Raspberry Pi CM4 (optional)
Wide Range Input Power DC9~32V
Multiple I/O Interfaces
Powerful Computing capability
CPU Heatsink Transfer Heat To Metal Casing
Ethernet, WiFi, Bluetooth, Serial Port, GPIO, HDMI, I2C, SD, USB, RTC, Buzzer, M.2 (for 5G), Mini-PCIe (for 4G/NB-IoT/LoRa)
RTC Real Time Clock x 1 (Battery backup)
Buzzer x 1
Watch Dog function
I2C interface x 1 port (built-in)
SPI interface (onboard)
Display port interface (DSI on raspberry pi onboard)
Camera port interface (CSI on raspberry pi onboard)
Specifications:
Pi CM4 Module (optional)
CPU : ARM v8 A72 Quad core 64-bit SoC 1.5 GHz
ROM : 8 / 16 / 32 G Bytes
RAM : 1 / 2 / 4 / 8 G Bytes LPDDR4 SDRAM
GPU : OpenGL ES 3.0 graphics
OS : Linux OS
Ethernet (RJ45 connector) : Gigabit LAN x 1 , 10/100 Mbps LAN x 1
WiFi 2.4 GHz and 5.0 GHz IEEE 802.11ac (IPEX cable & antenna optional)
Bluetooth 5.0 BLE (optional)
M.2 : USB 3.0 / PCIe for 5G, SSD (optional)
The M.2 slot can be either B key or M key
B key is for 5G
M key is for PCIe SSD or AI Coral Module
mini-PCIe : Only support PCIe based on USB for 4G/NB-IoT/ LoRa (optional)
SIM slot for 4G / 5G
Micro HDMI x 1 for Video / Audio (up to 4KP 60)
H.265 (4KP 60 decode)
H.264 (1080P 60 decode, 1080P 30 decode)
Serial Port
RS232/485/422 x 1
RS232/485 x 1
USB 3.0 x 2
USB 2.0 x 2
Digital Input / Output GPIO x 2 pins
Digital Input x 1 pin (Active High / Active Low Selective)
Dry contact
Logic level 0 : close to GND
Logic level 1 : open
Wet contact
Logic level 0 : 0~3 V
Logic level 1 : 10~30 V
Digital Output x 1 pin (Active High / Active Low Selective)
120VAC @ 0.5A , 240VAC @ 0.25A , 30VDC @ 1A
LED indicator : SYS (PWR) , 5G , 4G , DO , DI , Serial
Operating Temperature : -10 ~ 75 ºC
Storage Temperature : -15 ~ 80 ºC
Dimension : 170 x 110 x 30 mm (W x D x H)
Weight : 950 ± 5 g
Casing : Metal
Power : DC 9~32V, 1000mA@12V Support DC Jack and Terminal input
Specifications are subject to change without prior notice
