Radio Frequency Identification Reader
Item No.: | PCR320 |
Supplier Details
Country: Taiwan
City: New Taipei City
Address: 8F, No. 31 Lane 169, Kang-Ning Street, Hsi-Chih Dist
TEL: +886-2-26954214
Fax: +886-2-26954213

Online Showroom:
84 Products
DESFire /Mifare Card Reader & Writer
Introduction:

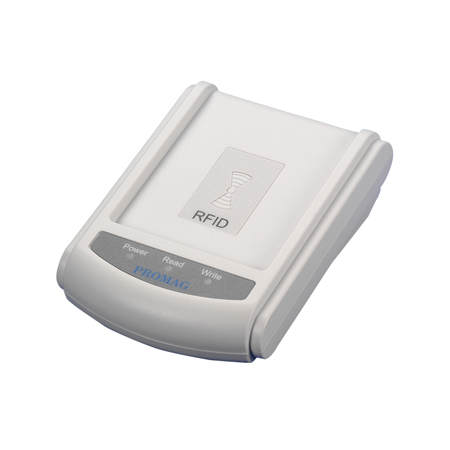

The PCR320 is a high performance DESFire Mifare card reader and writer. Multi-application cards can be applied to use with this read/write unite. By using PCR320 with the bundled software, customers can implement their own applications and define security keys themselves.
Features:
Faster data transfer
True anti-collision
High data integrity
Applications:
Guest registeration system
Authorization identification
Identity authentication
Pre-payment, Ticketing
Prepaid parking/Meal coupon
Multi-applications: tracking, retail, customer loyalty, Leisure, gambling
Specifications:
Ordering information:
PCR320 - USB interface
※ Specification is subject to change without notice.
Introduction:
The PCR320 is a high performance DESFire Mifare card reader and writer. Multi-application cards can be applied to use with this read/write unite. By using PCR320 with the bundled software, customers can implement their own applications and define security keys themselves.
Features:
Faster data transfer
True anti-collision
High data integrity
Applications:
Guest registeration system
Authorization identification
Identity authentication
Pre-payment, Ticketing
Prepaid parking/Meal coupon
Multi-applications: tracking, retail, customer loyalty, Leisure, gambling
Specifications:
Specification / Model | PCR320 |
Interface | USB |
Reading Frequency | 13.56Mhz |
RF Distance | Up to 5 cm ( MFA01) |
Card types | ISO14443A Mifare Class Mifare Pro MIfare DESFire |
80 mm / 125KHz | |
Power requirement | 5V/150mA |
Safety Certificate | CE / FCC |
Dimensions | L120 x W86 x H42 mm |
Environment | Operation Temperature: -10 ~ 60 Deg. C Storage Temperature: -10 ~ 60 Deg C Humidity: 10 ~ 90% |
Ordering information:
PCR320 - USB interface
※ Specification is subject to change without notice.
