Rack System
Item No.: | D915 |
Supplier Details
Country: Taiwan
City: New Taipei
Address: 10F-1, No. 18, Lane 609, Sec.5, Chung Hsin Rd., San Chung District
TEL: +886-2-77165168
Fax: +--
Online Showroom:
30 Products

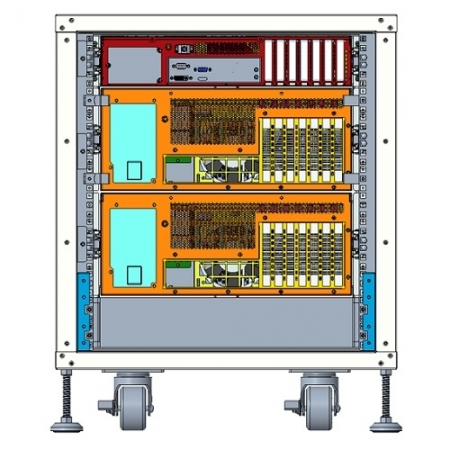

This Rack System includes 1x custom rack cabinet, 1x 2U custom system, 2x 4U custom systems and 1 x 2U UPS. The complete rack system including both host and computing server systems is for the advanced medical diagnostic equipment.
Application: Rack System for Medical Diagnostic Equipment
Key Features:
A complete rack system including 3 x subsystem and UPS
1 x 2U and 2 x 4U system in one rack
2U system supports ATX MB with Single Intel Core CPU
4U system supports EATX MB with dual Intel Xeon CPU
2U ATX PSU in 2U system / PS/2 size ATX PSU in 4U system
Spec:
Chassis Material: SGCC + Stainless Steel Sheet Metal
Form Factor: Non-Standard Rack
Power Supply: 2U ATX PSU in 2U System
PS/2 Size ATX PSU in Each 4U System
1 x UPS
Drive Capacity: 1 x 5.25” bay + 1x 3.5” Internal HDD or Exposed FDD bay in 2U
2 x 5.25” bay + 1x 3.5” Internal HDD or Exposed FDD bay in 4U
Expansion Slot: 7 x Low-Profile Slot in 2U System ; 7 x Full-Height Slot in 4U System
Cooling Fan: 2 x 80*80*25mm Fan in 2U System ; 2 x 120*120*25 Fan in 4U system
LED Indicator: Power on LED on Each 2U and 4U System
Button: Power, Reset on Each 2U and 4U System
Dimension(DxWxH): 738 x 580 x 708mm
