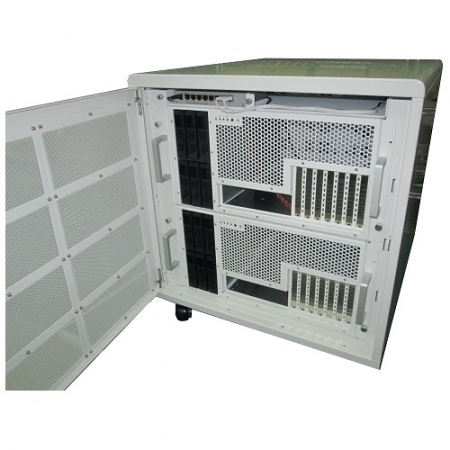

Rack Cabinet with Rackmount Chassis
Item No.: | D901 |
Supplier Details
Country: Taiwan
City: New Taipei
Address: 10F-1, No. 18, Lane 609, Sec.5, Chung Hsin Rd., San Chung District
TEL: +886-2-77165168
Fax: +--

Online Showroom:
30 Products
This custom product includes rack cabinet, 2.5U and 5U chassis. One rack is designed for one complete HPC server system integrating 4 x 2.5U subsystems or 2 x 5U subsystems + 1x 8port Gigabit switch. This special system requires the thermal design with low noise fans to meet the low noise level requirements in office environment.
Application: HPC Server System for Office Environment
Key Features:
Stand alone rack design for HPC server system
4 x 2.5U or 2 x 5U system in one rack
Fan wall with 9 x low noise fan at rear panel of rack cabinet
1 x 8port Gigabit switch
2.5U chassis supports single processor ATX MB
5U chassis supports dual processors EATX MB
PS/2 size ATX PSU in each 2.5U and 5U system
Spec:
Chassis Material: SGCC + Aluminum Sheet Metal
Form Factor: Non-Standard Rackmount
Power Supply: PS/2 Size ATX PSU in 2.5U and 5U chassis
Drive Capacity: 2 x 2.5“ Hot-Swappable HDD in 2.5U Chassis
6 x 3.5” Hot-Swappable HDD in 5U Chassis
Expansion Slot: 7 x Low-Profile Slot in 2.5U Chassis
7 x Full-Height Slot in 5U Chassis
Ethernet Switch: 1 x 8port Gigabit switch
Cooling Fan: 9 x 140*140*25mm Fan
LED Indicator: Power on, HDD
Button: Power, Reset
Dimension(DxWxH): 640 x 550 x 608mm
More info: http://www.ashinne.com.tw/product-detail.aspx?id=30
