1U 2-Blade Short Server Chassis
Item No.: | R108-U |
Supplier Details
Country: Taiwan
City: New Taipei
Address: 10F-1, No. 18, Lane 609, Sec.5, Chung Hsin Rd., San Chung District
TEL: +886-2-77165168
Fax: +--

Online Showroom:
30 Products

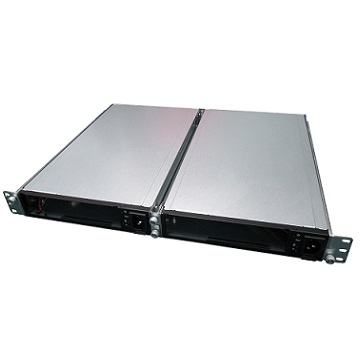

This 1U 2-blade short server chassis is a sister product of R108 which was modified to make bigger open hole for MB I/O ports. It can fit into all standard mini-ITX MBs suitable for 1U system without modifications of the I/O panels.
Application: Server, Hosting Server
Key Features:
1U server supports 2 computing blades with mini-ITX MB
Each blade supports 1 x mini-ITX MB + 2 x 2.5” HDD + 1 x PSU
Support back-to-back installation
Support all standard mini-ITX MBs suitable for 1U system
Spec:
Chassis Material: SGCC Sheet Metal
Form Factor: 1U Rackmount supports 2 Computing Blades with mini-ITX MB
Power Supply: Flex ATX PSU in Each Blade
Drive Capacity: 2 x 2.5” HDD in Each Blade
Cooling Fan: 2 x 40*40*28mm or 2 x 40*40*20 Fan in Each Blade
LED Indicator: Power on, HDD
Button Power, Reset
Dimension(DxWxH): 350 x 430 x 44mm
Application: Server, Hosting Server
Key Features:
1U server supports 2 computing blades with mini-ITX MB
Each blade supports 1 x mini-ITX MB + 2 x 2.5” HDD + 1 x PSU
Support back-to-back installation
Support all standard mini-ITX MBs suitable for 1U system
Spec:
Chassis Material: SGCC Sheet Metal
Form Factor: 1U Rackmount supports 2 Computing Blades with mini-ITX MB
Power Supply: Flex ATX PSU in Each Blade
Drive Capacity: 2 x 2.5” HDD in Each Blade
Cooling Fan: 2 x 40*40*28mm or 2 x 40*40*20 Fan in Each Blade
LED Indicator: Power on, HDD
Button Power, Reset
Dimension(DxWxH): 350 x 430 x 44mm
