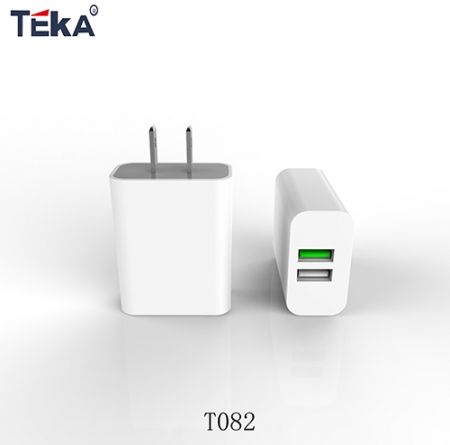

QC3.0 Charger 24W - T082

QC3.0 Charger 24W

Item No.: T082
Supplier Details
Country: Taiwan
City: Miaoli County
Address: No.2 Lane18,alley333 Chung cheng road Zhunan Town Miaoli County ,350 Taiwan
TEL: +886-37-466060
Fax: +886-37-460345
Online Showroom: 17 Products
INPUT SPECIFICATIONS
 Input Voltage:100~240Vac
 Input Frequency:60Hz/50Hz
 Input AC Current/AC:0.35A
 Inrush Current:30Amax


 OUTPUT SPECIFICATIONS
 USB Output:Super Charger(5V2.4A)
 QC Charger:QC3.0(5V/9V/12V)18W
 USB+TYPE-C Charger:1*Type-c(5V3A)
 Turn-on Delay Time:3S
 Short Circuit Protection
 Ripple And Noise:120mV
 Line Regulation:±5%
Output Regulation:±5%


 GENERAL SPECIFICATIONS
 Efficiency standard:VI
 Leakage Current:0.25mA
 MTBF:50000H
 Overvoltage protection:120%MIN
 Overcurrent protection:120%MIN
 Operating Temperature:10℃~40℃
 Storage Temperature:-20℃~+80%℃
 Humidity:5~95%RH(non-condensing)
