PSV2 Pneumatic Seals
| Item No.: | PSV2 |
Supplier Details
Country: Taiwan
City: Nantou County
Address: No. 336, Gongye Rd., Nantou City
TEL: +886-49-2255011
Fax: +886-49-2250035
Online Showroom:
47 Products
Product Description

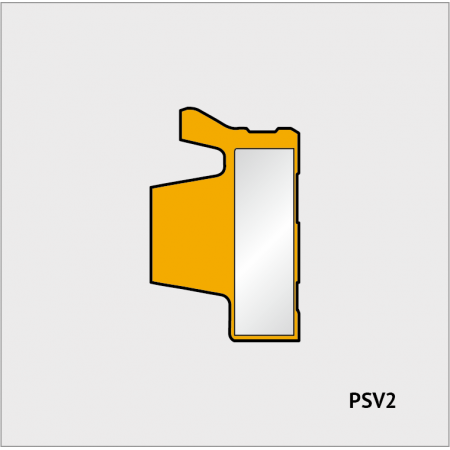

A PSV2 Pneumatic Seal is a one-way seal that combines NBR and metal parts. The seal is designed with a special cushion structure to improve its cushioning performance. Complete piston for single-acting pneumatic cylinders with end cushioning.
Material
NBR
Product Advantages
Application
Single-acting pneumatic cylinder
Operating Conditions
Surface Roughness
A PSV2 Pneumatic Seal is a one-way seal that combines NBR and metal parts. The seal is designed with a special cushion structure to improve its cushioning performance. Complete piston for single-acting pneumatic cylinders with end cushioning.
Material
NBR
Product Advantages
- Good media resistance
- Excellent wear resistance
- Low frictional resistance
- Wide operating temperature range
- Very good static and dynamic tightness
- Low assembly height of the complete piston enables short cylinder designs.
Application
Single-acting pneumatic cylinder
Operating Conditions
| Material | NBR |
| Pressure | ≦10 Mpa |
| Speed | ≦0.5 m/s |
| Temperature Range | -40°C , +100°C |
Surface Roughness
| Sliding Surface | |
| Ra | 0.1~0.8 µm |
| Rz | 0.4~3.2 µm |
