Proprietary Cabinet System (CCC certified)
Item No.: | D906 |
Supplier Details
Country: Taiwan
City: New Taipei
Address: 10F-1, No. 18, Lane 609, Sec.5, Chung Hsin Rd., San Chung District
TEL: +886-2-77165168
Fax: +--
Online Showroom:
30 Products

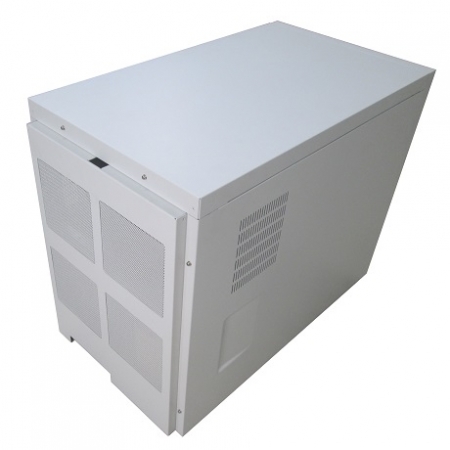

This custom product is for top of the world medical equipment manufacturers. It includes two subsystems in the cabinet. One is ATX tower system used as host PC system; another is EATX tower system used as computing server system. Ashinne designed the cabinet and adopted the off-the-shelf tower chassis for the two subsystems. Ashinne had applied and passed the CCC(China Compulsory Certificate) certification on factory to make this system product passed the CCC certification according to customer’s special request.
Application: Host and Computing Server for Medical Equipment
Key Features:
Stand alone cabinet includes two subsystems
ATX tower subsystem supports ATX MB with single Intel core processor
EATX tower subsystem supports EATX MB with dual Intel Xeon processor
Spec:
Chassis Material: SECC + Stainless Steel Sheet Metal
Form Factor: Non-Standard Cabinet
Power Supply: PS/2 Size ATX PSU in ATX and EATX Tower System
Drive Capacity: 4 x 3.5“ HDD + 3 x 5.25” bay in ATX Tower System
4 x 3.5“ HDD + 3 x 5.25” bay in EATX Tower System
Expansion Slot: 4 x PCIe + 4 x PCI Card in ATX Tower System
4 x PCIe Card in EATX Tower System
Cooling Fan: 1 x 80*80*25mm + 1 x 120*120*25mm Fan in ATX System 1 x 80*80*25mm + 1 x 120*120*25mm Fan in EATX System
LED Indicator: None(Remote Control)
Button: None(Remote Control)
Dimension(DxWxH): 745 x 420 x 607mm
More info: http://www.ashinne.com.tw/product-detail.aspx?id=22
Application: Host and Computing Server for Medical Equipment
Key Features:
Stand alone cabinet includes two subsystems
ATX tower subsystem supports ATX MB with single Intel core processor
EATX tower subsystem supports EATX MB with dual Intel Xeon processor
Spec:
Chassis Material: SECC + Stainless Steel Sheet Metal
Form Factor: Non-Standard Cabinet
Power Supply: PS/2 Size ATX PSU in ATX and EATX Tower System
Drive Capacity: 4 x 3.5“ HDD + 3 x 5.25” bay in ATX Tower System
4 x 3.5“ HDD + 3 x 5.25” bay in EATX Tower System
Expansion Slot: 4 x PCIe + 4 x PCI Card in ATX Tower System
4 x PCIe Card in EATX Tower System
Cooling Fan: 1 x 80*80*25mm + 1 x 120*120*25mm Fan in ATX System 1 x 80*80*25mm + 1 x 120*120*25mm Fan in EATX System
LED Indicator: None(Remote Control)
Button: None(Remote Control)
Dimension(DxWxH): 745 x 420 x 607mm
More info: http://www.ashinne.com.tw/product-detail.aspx?id=22
