Programmable Keyboards

Introduction:

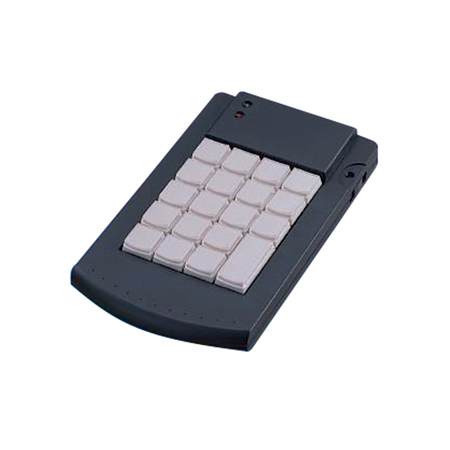

KB20A is a fully programmable input device that provides simultaneous connection of another keyboard. KB20A also features as a standalone keyboard which is great for dedicated applications.

Features:
☆Reduces complex and repetitive keyboard task to a single keystroke
☆Activate complex commands in CAD and other drawing programs
☆Program frequently used special characters or key sequences
☆Program frequently typed information like names and address
☆Provides the convenience of a dedicated keyboard for unique system application, like POS system
·Supports two layers of multiple key commands
·Provides hardware-based programming, no special programming software is needed
·Two LED indicators equipped to show the layer been using
·Slide switch for programming mode
Applications:
·PC-based integrated POS systems
·Banking terminals
·Special application systems

Specifications:

Interface	PC AT or PS/2 keyboard port (USB version available)
Operation System	All OS supporting PC type keyboard
Number of layers	2 layers- user selectable toggle and/or shift keys
Number of characters stored	Each key is allocated 3 characters and a total of 915 additional keystrokes are allocated to any keys that require additional characters
Key switch life time	Cherry mechanical key switch 20 million operations
Operation Temperature	5 – 45 Degree C
Dimension	KB20- 177(D) x 108(W) x 37 (H) mm

Ordering information:
·KB20AP – 20 KEYS PC/AT & PS/2 type
·KB20AU – 20 keys USB type
·KB20AR – 20 keys RS232

※ Specification is subject to change without notice.
