Pressure Transducer
| Item No.: | PA001 |
Supplier Details
Country: Taiwan
City: Taipei City 104032
Address: 6F., No. 162, Sec. 2, Zhongshan N. Rd., Zhongshan Dist.
TEL: +886-2-25868767
Fax: +886-2-25868767
Online Showroom:
57 Products

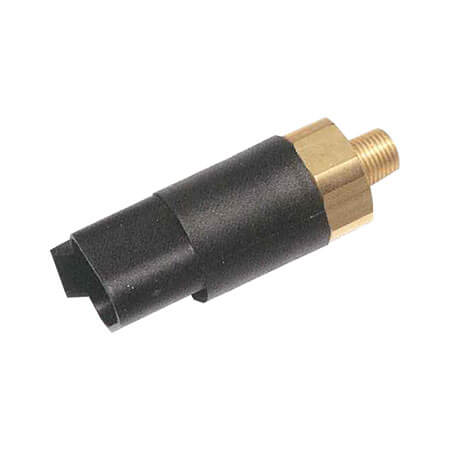

Pressure sending unit sender
PA001
Application
Air pressure measurement
Features
1. 100% Metal case (not plastic)
2. Easy to install with attached connector
3. 100 PSI
4. Input 0-100 PSI
5. Output: 0.5V-4.5V linear voltage output; 0 PSI outputs 0.5V; 50 PSI outputs 2.5V, 100 PSI outputs 4.5V
6. Accuracy: within 2% of reading (full scale).
7. Weight 55g
8. Working Temperature: -40ºC - +120ºC
9. IP class: IP67
10. Pressure Medium: The gas and liquid which is compatible with 316L
11. Load Resistance: ≤ (supply power-6.5V/0.02A)Ω;
12. Long-term stability: Less than 0.1% FS/year;
13. Temperature Effect on Zero: Typical:0.02%FS/ºC; Maximum:0.05%FS/ºC
14. Temperature Effect on Sensitivity: Typical:0.02%FS/ºC; Maximum:0.05%FS/ºC
15. Shock Resistance: 1000g;
16. Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)
17. Response Time: ≤1ms;
18. Insulation Resistance: >100mΩ 500VDC
