Water Pressure Gauge
Item No.: | Pressure Gauge |
Supplier Details
Country: Taiwan
City: Pingtung County 900
Address: No.2,S. 1st Rd., Pingtung City
TEL: +886-8-7511181
Fax: +886-8-7513525

Online Showroom:
64 Products
Pressure Gauge
Service Intended
General purpose heavy duty pressure gauges, for use with oil, water or any other liquid which will not attack brass or bronze, also suitable for air or inert gases if maximum scale reading does not exceed 25 bar. These types of pressure gauges are mainly using in power plant, food industry, refineries and other Industrial Process Applications. It ranges from 1 kg/cm² to 2000 kg/cm²
Ranges
15 lb/in² - 20,000 lb/in²
Also 0/30"Hg vacuum
(All gauges normally supplied dual scale lb/in² and bar)
Pressure Connections
3/8" BSP up to and including 70 bar 1/2" BSP above 70 bar. NPT also available.
Pressure Element
Phosphor bronze up to and including 70 bar / steel tube for higher ranges.
Weather Protection
IP 45 Unions and nipple
Specification
All the ranges are available in PSI, Kpa, MMWC, BAR, etc. as per users preference
Service Intended
General purpose heavy duty pressure gauges, for use with oil, water or any other liquid which will not attack brass or bronze, also suitable for air or inert gases if maximum scale reading does not exceed 25 bar. These types of pressure gauges are mainly using in power plant, food industry, refineries and other Industrial Process Applications. It ranges from 1 kg/cm² to 2000 kg/cm²
Ranges
15 lb/in² - 20,000 lb/in²
Also 0/30"Hg vacuum
(All gauges normally supplied dual scale lb/in² and bar)
Pressure Connections
3/8" BSP up to and including 70 bar 1/2" BSP above 70 bar. NPT also available.
Pressure Element
Phosphor bronze up to and including 70 bar / steel tube for higher ranges.
Weather Protection
IP 45 Unions and nipple
Specification

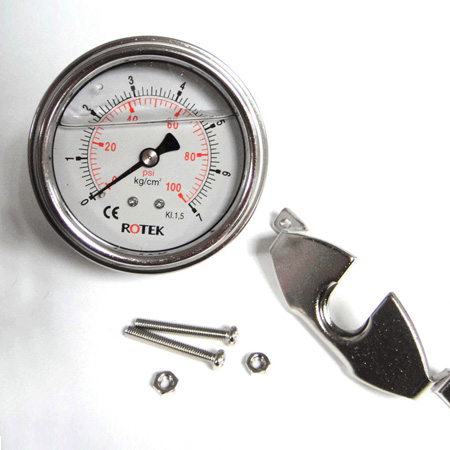

ROTEK pressure gauge | |
Diameter | 2」, 2.5」, 3」, 4」, 6」 |
Pressure Range | -30inHg ~ 0 ~ 15000psi |
-76cmHg ~ 0 ~ 1000 kg / cm 2 | |
Casing & Bezel | SUS304 or EPDM Surface, anti-shock PP, PVDF |
Diaphragm | SS316, Monel, Tantalum Hastalloy etc. |
Connection | 1/8」, 1/4」, 3/8」, 1/2」, PT, NPT, BSPT, PF |
Mounting | Direct, Flanged |
Entry | Bottom Back |
Pointer | Micro Zero or center zero adjustable |
Movement Material | SS 304 / Brass |
Bourden Material | SS 316 / Brass |
Socket Material | SS 316 / Brass |
Filling | 99.5% Glycerin or 1000# silicone oil |
Bourdon Tube | Brass or Phosphor bronze |
Accuracy | +/- 1.0% F.S.D, +/- 1.5% F.S.D |
Temperature Range | 20℃ to +60℃ |
Over Range Protection | 125% of F.S.D |
Upper Chamber | SS304, CS, SS316 |
Lower Chamber | SS316, Hastalloy etc. |
All the ranges are available in PSI, Kpa, MMWC, BAR, etc. as per users preference
