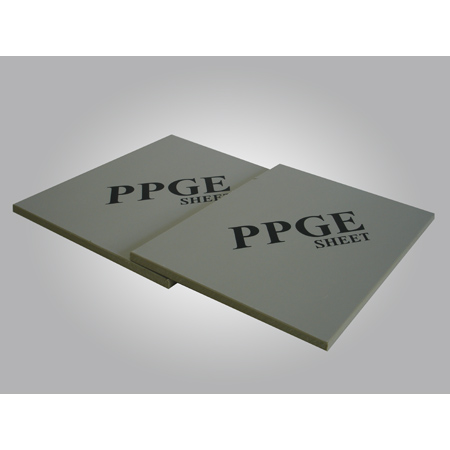

PPGE Regular Dark Grey Sheet
Item No.: | TGXG-380 |
Supplier Details
Country: Taiwan
State: Taiwan
City: Kaohsiung
Address: No.16,Tzu-Chi Rd.,FengShan District
TEL: +886-7-7517106
Fax: +886-7-7254797
Online Showroom:
57 Products
<Advantages>
1. Smooth Surface and Flatness Characteristics
2. Superior flatness
3. High impact strength
4. Excellent chemical-resistant
5. Resistant sunshine is not easy to change color
6. Suitable for fabrication of air conducting pipes
7. Cheap
<Specifications & Colors>
Thickness(mm):3、4、5 、6 、8、10、12、15,other specifications thickness can be customized.。
Size(Width x Length)( mm):1220x2440、1500x3000。
Color:Dark grey (380)
Note:The sheet stress relief surcharge.
<Applications>
1. Acid windmill
2. Acid duct
3. wastewater treatment equipment
4. emission project
5. Acid and alkali washing tower
6. Blower Cover
7. Mixed dust collector
8. The central system on gas engineering
9. Circulating gas system works
10. General exhaust Engineering<Property data sheet>
Modulus of Elasticity in Tension:14000↑;Test Method:ASTM D638-08
Modulus of Elasticity in Flexural:13500↑;Test Method:ASTM D790
Tensile Strength:250↑;Test Method:ASTM D638-08
Tensile Break Stress:150↑;Test Method:ASTM D638-08
Elongation at Break: 50↑;Test Method: ASTM D638-08
Heat Deflection Temperature:90↑;Test Method:ASTM D-648
Vicat Softening Temperature: 140↑;Test Method:ASTM D-1525
IZOD Un-notched 23℃ Impact Strength: 3↑;Test Method:ASTM D-256-93a
* Unit:kgf/cm2
