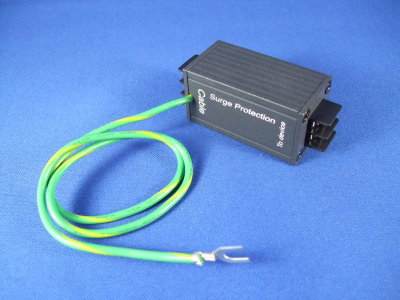

Power Surge Protector "Terminal" Type
| Item No.: | 03-S201-00 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY 251
Address: 1FL., NO.69-6, SEC.2, CHUNG CHENG E. RD., DANSHUI DIST., NEW TAIPEI CITY 251, TAIWAN (R.O.C.)
TEL: +886-2-28091533
Fax: +886-2-28091306
Online Showroom:
81 Products
Feature：
1.Performs a different function than grouding requirements
2.Protects equipment from high voltage surges from nearby lightning strikes.
3.Two stage protection：under 1ns-90V , over 10ns-12V
4.Wide range of applications：CCTV/CATV system , Antenna of Television , FM receivers , video camera , monitors , multiplexers & Quad processor , VCR...ect.
Specifications：
1.Terminel , Hi Frequency for both CCTV and CATV use
2.2 Port Terminel.
3.Normal Resistance Across Coax：10,000 M ohm
4.Surge Resistance Approx：0 ohm
5.BAND PASS：0~1 GHZ
6.Power passing Capability 130V AC/DC , 65 Vrms at 10Amps
7.Insertion Loss：Less than 0.2dB
8.Return Loss (75 ohms)：16dB
