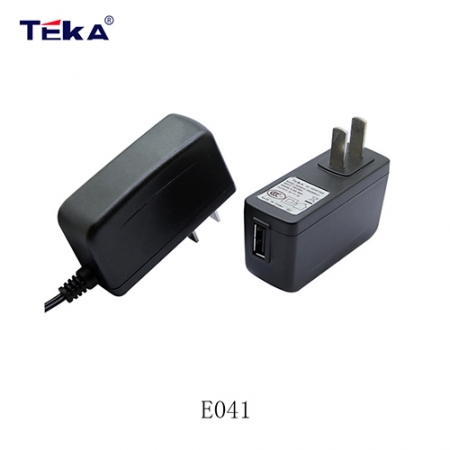

Power Adapter 12W - E041

Power Adapter 12W

Item No.: E041
Supplier Details
Country: Taiwan
City: Miaoli County
Address: No.2 Lane18,alley333 Chung cheng road Zhunan Town Miaoli County ,350 Taiwan
TEL: +886-37-466060
Fax: +886-37-460345
Online Showroom: 17 Products
INPUT SPECIFICATIONS
Input Voltage:100~240Vac
Input Frequency:60Hz/50Hz
Input AC Current/AC:0.35A
Inrush Current:30Amax

OUTPUT SPECIFICATIONS
Output Voltage:4-36V
Turn-on Delay Time:3S
Output Current:0.1-2A
Output Power Range:0-12W
Short Circuit Protection
Ripple And Noise:120mV
Line Regulation:±5%
Output Regulation:±5%

GENERAL SPECIFICATIONS
Efficiency standard:VI
Leakage Current:0.25mA
MTBF:50000H
Overvoltage protection:120%MIN
Overcurrent protection:120%MIN
Operating Temperature:10℃~40℃
Storage Temperature:-20℃~+80%℃
Humidity:5~95%RH(non-condensing)
