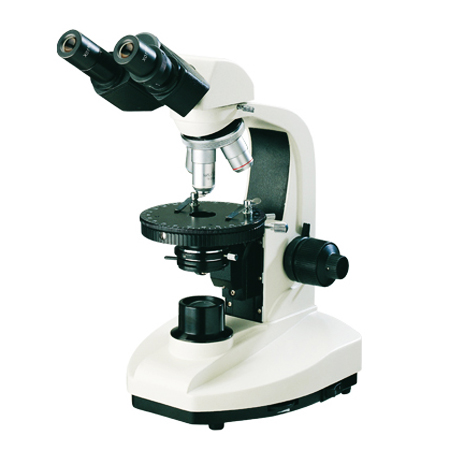

Polarizing Microscope
| Item No.: | MP20 |
MP20 polarization microscope is utilized polarize light to observe and research the polarize characteristic of the matter which has the double refraction. MP20 is widely used in medical inspection, such as the frame detail of the nerve fiber, the animal muscle, the plant fiber and the crystal of the tooth, bone, hair and alive cell etc. Use MP20,you can observe the fine frame of the biochemistry salt crystal that the fine frame can't be observed under nature light.
Features:
◆ Equipped with wide field eyepieces and achromatic objectives, the field of view is widely and clear.
◆ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
◆ 6V 20W halogen lamp transmission illumination brightness control.
◆ Abbe condenser
Standard Configuration:
Model | MP 20 |
Eyepiece | Wide field 10X(Φ18mm) |
Objective | Achromatic objectives 4X/0.10 |
Achromatic objectives 10X/0.25 | |
Achromatic objectives 40X/0.65 (Spring) | |
Achromatic objectives 100X/1.25(Spring, oil) | |
Eyepieces tube | Binocular, Inclination of 30˚ |
Polarization analyzer | Sliding |
Focus system | Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm. |
Nosepiece | Quadruple (Backward ball bearing inner locating) |
Stage | Rotatable stage(Diameter:Φ120mm) |
Abbe condenser | NA.1.25 Rack & pinion adjustable |
Filter | Blue filter |
Frosted filter | |
Polarizer | 360° rotatable stage |
Collector | For illumination with halogen lamp With field diaphragm |
Illumination unit | With polarizer,6V 20w, halogen lamp,adjustable brightness |
Optional accessories:
Name | Sort/Technique parameter |
Eyepiece | Wide field 16X(Φ11mm) |
Dividing 10X(Φ18mm) 0.1mm/Div | |
Eyepieces tube | Monocular , 360˚rotatable, inclination of 30˚ |
Trinocular, inclination of 30, observe and photograph at the same time | |
Nosepiece | Quintuple (Backward ball bearing inner locating) |
Filter | Green filter |
Yellow filter | |
Digital Camera | MD10/20/30/50/90 |
MC15/20/30/50 | |
Stage | Double layer mechanical stage with (¦µ100mm) rotatable stage (Size: 135mmX125mm Moving range: 75mmX35mm) |
Camera adapter | Canon, Nikon, Olympus SLR etc. |
