Polarizing Microscope

Item No.:

MP41

Supplier Details

www.microscope-camera-manufacturer.com

Country: China

City:

Address:

TEL: +--

Fax: +--

Online Showroom: 41 Products

Product Details Supplier Profile

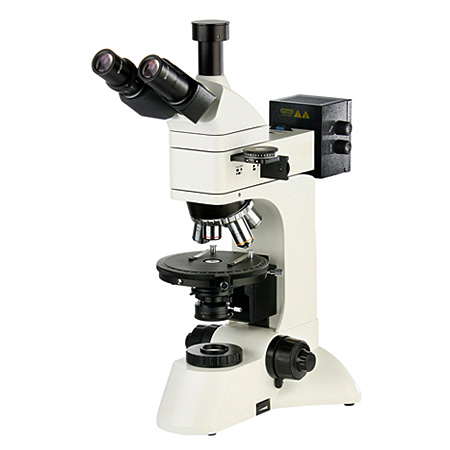

Transmitted & reflected polarizing microscope MP41 is designed to observe and research double refraction features in single polarizing, orthogonal and conoscope. MP41 can be widely used in the fields of geology, chemicals, physic and leechdom to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. MP41 is the ideal instrument for scientific research and universities teaching demo.

Features of MP41:

▲ Infinity optical system and modularization function design.

▲ Infinity long W.D plan objectives, view field widely and clear.

▲ Wide-field plan eyepieces Ф22mm.

▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.

▲ Polarizing unit can be move out or into optical path, polarizer and analyzer can be rotated from 0°to 360°.

▲ Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and with tightener, Stage vertical effective movement up to 30mm.

▲ Wide voltage range power supply (85-265V 50/60Hz), 6V30W halogen lamp, brightness adjustable.

▲ 100% light flux suit to low illuminance microphotography.

Standard Configuration

Model	MP41
Eyepiece	Wide field WF10X(¦µ22mm)
Eyepiece	Dividing eyepiece(field number:¦µ22mm) 0.10mm/Div
Objective	Strain-free plan achromatic objective (no cover glass)
	PL L5X/0.12 (Work distance):26.1 mm
	PL L10X/0.25 (Work distance):20.2 mm
	PL L40X/0.60£¨spring (Work distance):3.98 mm
	PL L60X/0.70£¨spring (Work distance):3.18 mm
Reflected illuminating system	6V30W halogen, brightness enable control.
	Polarizer can be rotated 360°.
	Analyzer can be rotatable 360° with scale and minimum vernier
	Integrated field and aperture diaphragm.
Nosepiece	Quadruple (the center of objective is adjustable )
Intermediate attachment	Puller type bertrand lens and center adjustable.
Compensator	λ ,λ/4 and quarts wedge compensator.
Eyepiece tube	Trinocular is inclined 30˚ and enable to shoot in 100% light flux.
Focus system	Coaxial coarse/fine focus with tension adjustable and up stop device, minimum division of fine focusing: 2μm.

Optional accessories

Name	Sort/Technique parameter
Infinity objective	Strain-free plan achromatic objective (no cover glass)
	PL L 20X/0.40(Work distance):8.80mm
	PL L50X/0.70£¨spring£©(Work distance):3.68 mm
	PL L80X/0.80£¨spring£©(Work distance):1.25 mm
	PL L100X//0.85(spring) (Work distance):0.4 mm
Nosepiece	Quintuple(Backward ball bearing inner locating)
Slide moving holder	Moving range: 30mmX25mm
Digital camera	MD10/20/30/50/90
Digital camera	MC15/20/30/50
Camera adapter	Canon, Nikon, Olympus SLR etc.
