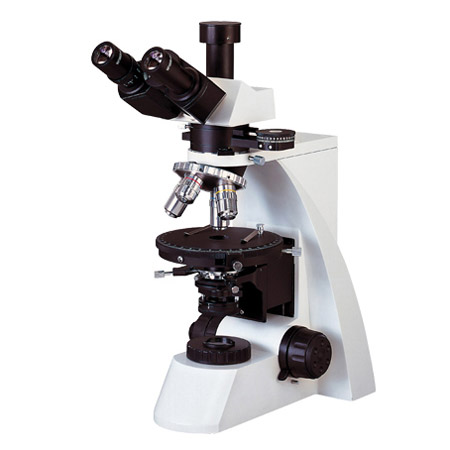

Polarization Microscope
| Item No.: | MP30 |
MP30 Polarization microscope utilized polarizes light to observe and research the specimen which have double refraction features. Single polarizing, orthogonal polarizing, cone light are available.MP30 is applied in geology, chemicals, physic as well as leechdom fields. Also it is widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. It is a good idea for scientific research and universities teaching demo.
Features:
◆ wide field eyepiece and strain-free plan achromatic objectives or infinity strain-free plan achromatic objectives
◆ Nosepiece can adjust the center of objective
◆ Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm
◆ Impellent style analyzer, 360°rotatable, push in/out from optical path conveniently
◆ Revolving round stage, 360°part scale and graduated in 1°increments, minimum resolution 6' when using vernier scale, center adjustable and with tightener
◆ Illumination with 6V20W halogen lamp, adjustable brightness
Standard configuration:
Model | MP30 |
Eyepiece | Wide field 10X(Φ18mm) |
Point 10X(Φ18mm) | |
Objective | Strain-free plan achromatic(no cover glass) 4X/0.10 |
Strain-free plan achromatic(no cover glass) 10X/0.25 | |
Strain-free plan achromatic(no cover glass) 40X/0.60 | |
Strain-free plan achromatic(no cover glass) 60X/0.75 | |
Eyepiece tube | Trinocular,inclination of 30˚,100% image light for photography capable |
Intermediate attachment | Polarization analyzer, 360° rotatable with scale and minimum venire |
Bertrand lens, impellent style, center adjustable | |
λCompensator | |
λ/4 Compensator | |
Quarts wedge compensator | |
Focus system | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm. |
Stage | Rotatable stage, Diameter ¦µ150mm, 360° graduated (in 1° increments), minimum retardation resolution 6' center adjustable and with tightened |
Abbe condenser | NA.1.25 Rack & pinion adjustable |
Filter | Blue filter |
Frosted filter | |
Polarizer | 360° rotatable, with four scale is 0°,90°,180°, 270° |
Collector | For illumination with halogen lamp With field diaphragm |
Illumination unit | With polarizer,6V 20w, halogen lamp, adjustable brightness |
Optional accessories:
Name | Sort/Technique parameter |
Eyepiece | Wide field 16X(Φ11mm) |
Objective | Strain-free plan achromatic 5X/0.12 |
Strain-free plan achromatic 20X/0.40 | |
Strain-free plan achromatic 60X/0.85 (spring) | |
infinity strain-free plan achromatic 4X/0.10 | |
infinity strain-free plan achromatic 10X/0.25 | |
infinity strain-free plan achromatic 20X/0.40 | |
infinity strain-free plan achromatic 40X/0.65 (spring) | |
infinity strain-free plan achromatic 100X/1.25 (spring, oil) | |
Eyepiece tube | Binocular, ,inclination of 30˚ |
Nosepiece | Quintuple Revolving Nosepiece |
Filter | Green filter |
Yellow filter | |
Digital Camera | MD10/20/30/50/90 |
MC15/20/30/50 | |
Camera adapter | Canon, Nikon, Olympus SLR etc. |
