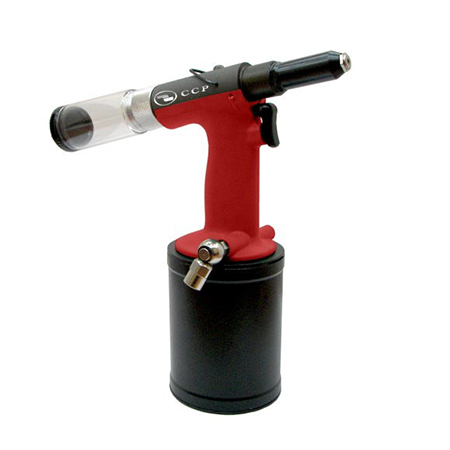

Pop Rivet Gun Pneumatic
| Item No.: | CCP-4000 |
Supplier Details
Country: Taiwan
City: New Taipei City 221
Address: No.159, Sec. 2, Datong Rd., Xizhi Dist.
TEL: +886-2-86926800
Fax: +886-2-86926804
Online Showroom:
39 Products
Patented design Two-stage switch, low air consumption, quiet operation and low recoil shock. Truck assembly suitable for general construction, long stroke.
Extra-long stroke 28.5mm.
Vacuum system with an integrated design, low triggering force.
Pull the rivet using angle no limit, performs well at any angle.
Lightweight and Durable ergonomically designed, maintenance and setup is very simple
Provides quick, quiet and comfortable operation preventing user fatigue.
Set 1/4" and 1/8" structural Monobolt rivets, "T" rivets and standard rivets-in all materials.
Extra-long stroke 28.5mm.
Vacuum system with an integrated design, low triggering force.
Pull the rivet using angle no limit, performs well at any angle.
Lightweight and Durable ergonomically designed, maintenance and setup is very simple
Provides quick, quiet and comfortable operation preventing user fatigue.
Set 1/4" and 1/8" structural Monobolt rivets, "T" rivets and standard rivets-in all materials.
| Specifications | Country of Origin: Taiwan Work Capacity: for setting standard rivets 3.2 ~ 6.4 mm (1/8 ~ 1/4 inch) in all materials Stroke: 28.5 mm (1.12 inch) Working Air Pressure: 85 ~ 95 PSI (6 – 6.7 kg/cm2) Traction Power: 3800 lbs (1725kg) Nosepieces: 1/8, 5/32, 3/16, 7/32, 1/4 inch (3.2, 4.0, 4.8, 5.6, 6.4 mm) Vacuum: Yes Tool Weight: 1.78 kg Height: 325 mm Length of Placing Head: 320 mm Base Diameter: 110 mm Safety/Quality Approvals: ISO9001; CE Sales Method: Export, Manufacture, OEM/ODM |
