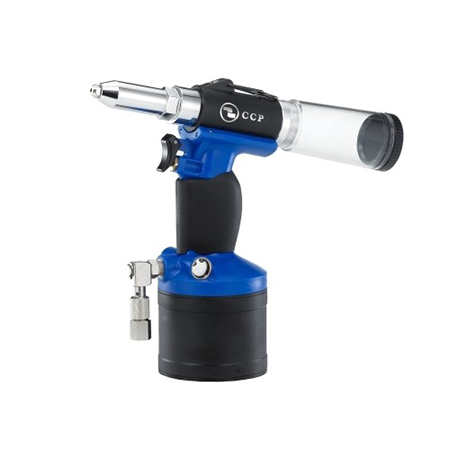

Pneumatic Riveter
| Item No.: | CCP-190N |
Supplier Details
Country: Taiwan
City: New Taipei City 221
Address: No.159, Sec. 2, Datong Rd., Xizhi Dist.
TEL: +886-2-86926800
Fax: +886-2-86926804
Online Showroom:
39 Products
Product lightweight design than traditional Riveter lighter and more powerful, more suitable for prolonged use.
Maximize operator comfort.
Lightweight and Durable, reliable and easy to service.
For General Maintenance or Light-duty Production.
Compact size and composite body.
Maximize operator comfort.
Lightweight and Durable, reliable and easy to service.
For General Maintenance or Light-duty Production.
Compact size and composite body.
| Specifications | Country of Origin: Taiwan Work Capacity: for setting standard rivets 2.4 ~ 4.8 mm (3/32 ~ 3/16 inch) in all materials Stroke: 15 mm (0.59 inch) Working Air Pressure: 85 ~ 95 PSI (6 ~ 6.7 kg/cm2) Traction Power: 2000 lbs (908kg) Nosepieces: 3/16, 5/32, 1/8, 3/32 inch (4.8, 4.0, 3.2, 2.4 mm) Vacuum: No Tool Weight: 1.39 kg Height: 248 mm Length of Placing Head: 290 mm Base Diameter: 96.5 mm Safety/Quality Approvals: ISO9001; CE Sales Method: Export, Manufacture, OEM/ODM |
