Hydraulic Rivet Gun
| Item No.: | CCP-270N |
Supplier Details
Country: Taiwan
City: New Taipei City 221
Address: No.159, Sec. 2, Datong Rd., Xizhi Dist.
TEL: +886-2-86926800
Fax: +886-2-86926804
Online Showroom:
39 Products

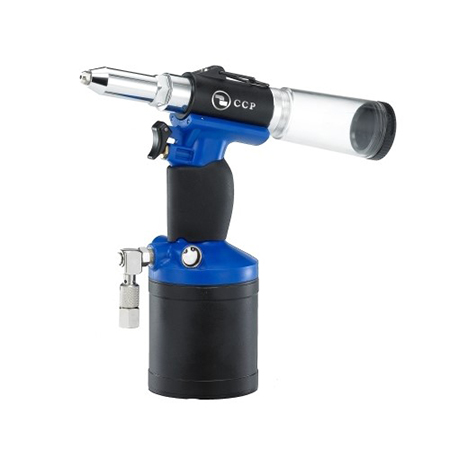

This is CCP-270N pneumatic riveting tool, have to long 23.5mm stroke applies in, Computer chassis assembly, vehicle assembly.
Set 3/16" and 3/32" structural Monobolt rivets, "T" rivets and standard rivets-in all materials.
Lightweight and Low vibrations and low noise level.
Touch that firing trigger for pulling, performs well at any angle.
Provides quick, quiet and comfortable operation preventing user fatigue.
Set 3/16" and 3/32" structural Monobolt rivets, "T" rivets and standard rivets-in all materials.
Lightweight and Low vibrations and low noise level.
Touch that firing trigger for pulling, performs well at any angle.
Provides quick, quiet and comfortable operation preventing user fatigue.
| Specifications | Country of Origin: Taiwan Work Capacity: for setting standard rivets 2.4 ~ 4.8 mm (3/32 ~ 3/16 inch) in all materials Stroke: 23.5 mm (0.925 inch) Working Air Pressure: 85 ~ 95 PSI (6 – 6.7 kg/cm2) Traction Power: 2000 lbs (908kg) Nosepieces: 3/16, 5/32, 1/8, 3/32 inch (4.8 mm, 4.0 mm, 3.2 mm, 2.4 mm) Vacuum: No Tool Weight: 1.46 kg Height: 268 mm Length of Placing Head: 290 mm Base Diameter: 96.5 mm Safety/Quality Approvals: ISO9001; CE Sales Method: Export, Manufacture, OEM/ODM |
