Multi-directional air intake set. For automobile manufacturing and repair, Container Boxes assembled, construction, machine tools and many applications.
Vacuum system with an integrated design. Toughened plastic body.
Patented structure design of valve brings a rapid movement of in-line piston.

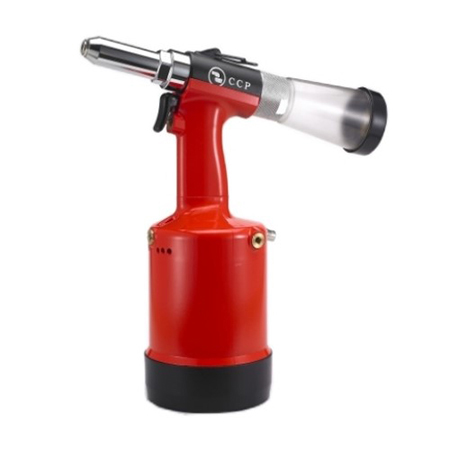

This powerful air hydraulic riveter is fast and rugged enough for production work.
360 degree air inlet which is good for working under all conditions of operation.
Brand-new technology, have low recoil of shock-less, can reduce part of tools wear, and the can reduce operator is tired.
Patented design Two-stage switch, low air consumption, quiet operation and low recoil shock.
Set 3/16" and 1/4" structural Monobolt rivets, "T" rivets and standard rivets-in all materials.

Specifications

Country of Origin: Taiwan   Work Capacity: for setting standard rivets 4.8 ~ 6.4 mm (3/16 ~ 1/4 inch) in all materials        Stroke: 25 mm (0.984 inch)   Working Air Pressure: 85 ~ 95 PSI (6 – 6.7 kg/cm2)   Traction Power: 3800 lbs (1723kg)   Nosepieces: 3/16, 7/32, 1/4 inch (4.8, 5.6, 6.4 mm)   Vacuum: Yes   Tool Weight: 1.9 kg   Height: 330 mm   Length of Placing Head: 332 mm   Base Diameter: 115 mm   Safety/Quality Approvals: ISO9001; CE   Sales Method: Export, Manufacture, OEM/ODM
