Pneumatic Rivet
| Item No.: | CCP-500M |
Supplier Details
Country: Taiwan
City: New Taipei City 221
Address: No.159, Sec. 2, Datong Rd., Xizhi Dist.
TEL: +886-2-86926800
Fax: +886-2-86926804
Online Showroom:
39 Products

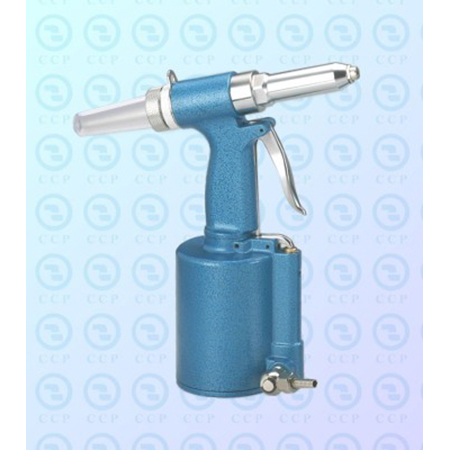

CCP-500M air riveter tools. Affordable, this Heavy Duty Air Hydraulic Rivet Gun is ideal for automotive, electronics, air conditioning and construction assembly works.
It delivers up to 90PSI working pressure. The hardened steel jaws set rivets in steel up to 1/4-inch thick. Supports rivet sizes 3/32- , 1/8- , 5/32-, 3/16-, 7/32- and 1/4-inch.
Rational design of easy operation and maintenance.
It delivers up to 90PSI working pressure. The hardened steel jaws set rivets in steel up to 1/4-inch thick. Supports rivet sizes 3/32- , 1/8- , 5/32-, 3/16-, 7/32- and 1/4-inch.
Rational design of easy operation and maintenance.
| Specifications | Country of Origin: Taiwan Work Capacity: up to 1/4 inch in all materials Traction Power: 3055 lbs (13589 n) Stroke: 14 mm (0.551 inch) Working Air Pressure: 85 ~ 100 PSI (6 - 7 kg/cm2) Nosepieces: 3/32, 1/8, 5/32, 3/16 7/32, 1/4 inch (2.4, 3.2, 4.0, 4.8, 5.6, 6.4 mm) Vacuum: No Tool Weight: 1.97 kg Height: 300 mm Length of Placing Head: 260 mm Base Diameter: 94 mm Packing: 10 pcs/ctn/3.3CU-FTn2 GW: 23 kg/ctn Safety/Quality Approvals: ISO9001; CE Sales Method: Export, Manufacture, OEM/ODM |
