Digital Torque controller
| Item No.: | E-BTM-C1000 |
Supplier Details
Country: Taiwan
City: New Taipei City 242018
Address: 3F., No. 212, Sec. 3, Zhonghua Rd., Xinzhuang Dist.
TEL: +886-2-85219935
Fax: +886-2-85219957
Online Showroom:
100 Products

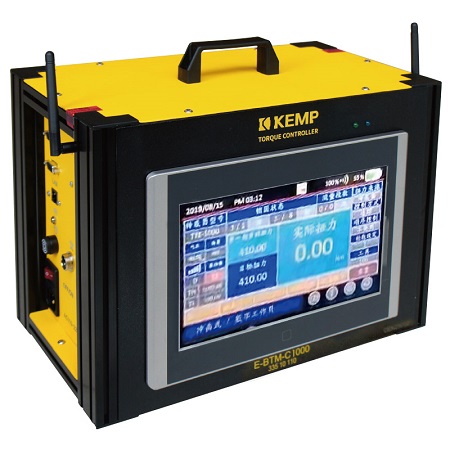

E-BTM-C Wireless Torque Controller
KEMP Intelligence system
- Used with wireless torque transducer with functions could display and control programming...etc.
- Versatile tools support：
Dynamic Tightening：Oil pulse Tools, Shut-off type Clutch, Torque multiplier, Click Torque Wrench Static Tightening：Torque wrench, Click Torque Wrench, Torque multiplier - Multiple control methods：
Dynamic Tightening：1. Torque 2. Track Static
Tightening：1. Torque 2. Click Torque Monitor 3. Click Torque Track 4. Monitor - Signal：1. Wireless transducer 2. Air pressure mode
- Torque adjustment：1. Deviation value corrected 2. Override value corrected
- Torque range verify：Easy set-up in minutes
- Torque Control Methods Set up torque control range
- Automatic air consumption rate measurement and selection for the broadest torque control range. (Suggest Air inlet 90~110psi)
- Origin：Taiwan
KEMP Intelligence system
- Built-in preset parameters and job sequences up for the ease of assembly works.
- Built-in torque fastening stage & bolting sequence control.
- Number of bolts：Preset the number of bolts to be fastened. Only when all bolts of each stage fastened, the system will switch to next stage and regulate the air pressure and flow rate correspondingly >and automatically
- Torque Compensation：The system will compensate the torque loss that may caused by the variation in the bolted joint hardness or the rise in temperature of hydraulic fluid of pulse wrench or the posture of operator to hold the tools during the process automatically within its allowable working air pressure range.
- Monitoring：Functions with VNC remote configuration or monitoring with PC, smart phone or tablet through Mobile APP are optional upon request
- Supervisor operator：Functions are restricted by privilege rating. Also record log in code and using time.
