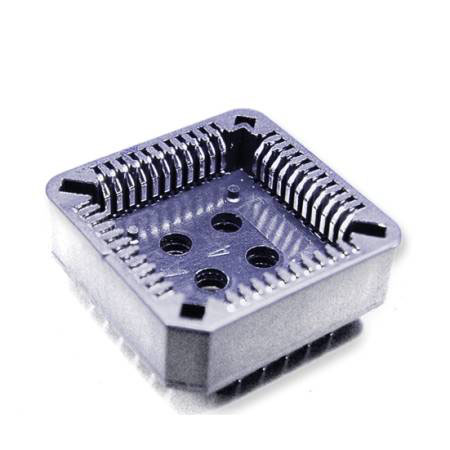

PLCC Sockets - 6-BH

PLCC Sockets

Item No.: 6-BH
Supplier Details
Country: Taiwan
City: Xinbei
Address: San Chung District
TEL: +886-02-12332233
Fax: +886-02-12332233
Online Showroom: 86 Products
Specifications:

1. PLCC socket Series 28, 32, 44, 48, 68, 84-pin
2. Contact: phosphor bronze
3. Insulator: glass filled thermoplastic PPS-GF30
4. PLCC Socket Body Color: Brown
5. Capacitance: maximum 2pF
6. Contact Plating: Tin over Ni
7. Dielectric strength: minimum 600V RMS
8. Contact resistance: maximum 20M Ohms
9. Rated current: 2A
10. Mechanical life: minimum 50 cycles
11. Contact pressure: min 1.5N per contact
12. Insertion resistance: minimum 5,000M Ohms
13. Flammability: UL 94V-0
