PIR-501 Large Sensor  - PIR-501 Large Sensor

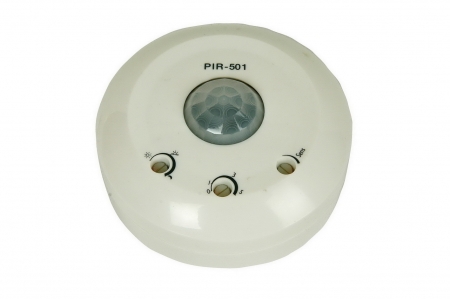

PIR-501 Large Sensor

Item No.: PIR-501 Large Sensor
Supplier Details
Country: Taiwan
City: Taichung
Address: 3F-1,No.210.38th, Rd,Taichung industrial Area,Taichung city,407 Taiwan
TEL: +886-4-23597488
Fax: +886-4-23597499
Online Showroom: 25 Products

Model  No.

PIR-501 Large Lens Sensor

Power Supply

AC100V ~ 240V, 50HZ/60HZ

Max. Load

Tungsten lamp: 600W, Fluorescent lamp:200W,Power saving lamp: 240W

Power Consumption

30mA, standby: 15mA

Sensing Angle

< R&L:130 degrees, UP&DOWN:90 degrees (at 25°C)

Sensing Distance

25℃<8m

Off Delay time

15~600 sec(adjustable)

Dimension

100×100×45mm

Weight

170g

Wiring

2in / 2out

Operating Temperature

-5°C~45°C, 23°F~113°F



































●Functions :

1.Security and convenience - The lamps always light up when people arrive.

2.Energy saving - Lamps will be off after people leave.



●Characteristics :

1.Stability

2.Special circuit design: It can resist spark,block.

3.Time 、day & night and distance can be adjustable.

4.It can be installed in wall, ceiling.



●Application places: Hallway, door gate, corridor, stairs, garage, balcony and

    basement …





We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

PIR-501 Large Sensor

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
