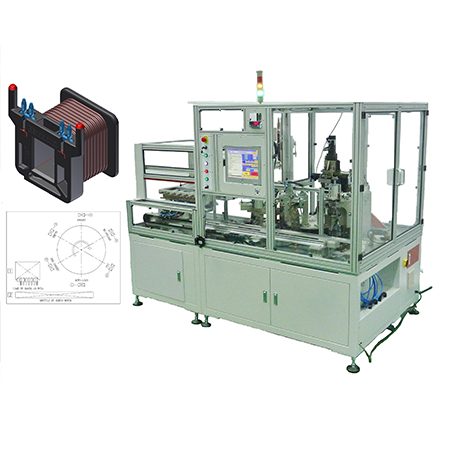

Terminal Insertion Machine
| Item No.: | AIP-01 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI
Address: NO.8,LN.302,XINSHU RD.,XINZHUANG DIST.,NEW TAIPEI CITY 242,TAIWAN(R.O.C.)
TEL: +886-2-22060881
Fax: +886-2-22060800
Online Showroom:
33 Products
SPECIFICATIONS
Item No. AIP-01
Description: TERMINAL INSERTER
Control system: AC Servo Motor
Data storage : 2GB CF Card
Load Bobbin Q'TY: 8 Pcs
Load Bobbin distance: 40mm
Max. Bobbin Diagonal: 70mm
Production capacity: 8 Sec/1 PCS
Max. speed of slider: 3000rpm
Spindle way accuracy: +/-0.02mm
Wire range: AWG48~28/0.03~0.06mm
Max. moving distance of shuttle: 1700mm
Max. moving distance of Pre-Insert shuttle: 200mm
Max. moving distance of insert-Y axis shuttle: 200mm
Max. moving distance of insert-X axis shuttle: 200mm
Power Source: 1φ AC220V,50/60HZ
Consumed power: 4KW
Air Pressure Supply Required: 5-6KGS/c㎡
Machine Dimension: 2450(L)X1700(W)X1950(H)
Machine weight: 1400KGS
Features: Pin pull force increases, when inserting pin, the enameled wire is damaged and will be fixed directly by pin-foots , not only to reduce the processing of soldering, fixing enameled wire costs, but also reduce the solder-production which will damage human body and environment.
Item No. AIP-01
Description: TERMINAL INSERTER
Control system: AC Servo Motor
Data storage : 2GB CF Card
Load Bobbin Q'TY: 8 Pcs
Load Bobbin distance: 40mm
Max. Bobbin Diagonal: 70mm
Production capacity: 8 Sec/1 PCS
Max. speed of slider: 3000rpm
Spindle way accuracy: +/-0.02mm
Wire range: AWG48~28/0.03~0.06mm
Max. moving distance of shuttle: 1700mm
Max. moving distance of Pre-Insert shuttle: 200mm
Max. moving distance of insert-Y axis shuttle: 200mm
Max. moving distance of insert-X axis shuttle: 200mm
Power Source: 1φ AC220V,50/60HZ
Consumed power: 4KW
Air Pressure Supply Required: 5-6KGS/c㎡
Machine Dimension: 2450(L)X1700(W)X1950(H)
Machine weight: 1400KGS
Features: Pin pull force increases, when inserting pin, the enameled wire is damaged and will be fixed directly by pin-foots , not only to reduce the processing of soldering, fixing enameled wire costs, but also reduce the solder-production which will damage human body and environment.
