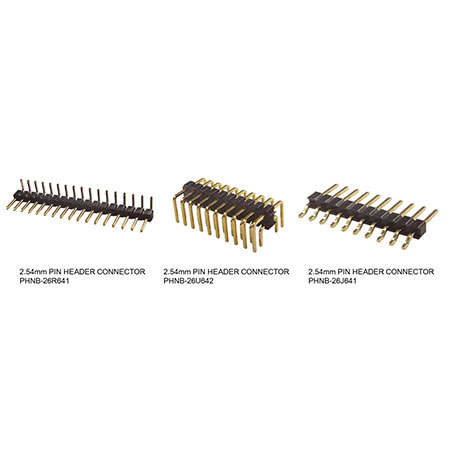

2.54 mm Pin Header

Item No.:

PHNB-26X64X-XXXX - 2.54-Pin Header

Supplier Details

Country: Taiwan

State: TAIWAN (R.O.C)

City: New Taipei City 235

Address: 4F., No. 123, Lide St., Zhonghe Dist.

TEL: +886-2-82276428

Fax: +886-2-82276427

Online Showroom: 93 Products

Application : PIN HEADER CONNECTOR
Mostly used inside equipment, rather than being used as a connector on the outside of the device.
Electronic Products, Industrial Computers, Communication Systems, Aftermarket parts etc.
Solder Type : SMT / Straight / Right angle / J Type / U Type
Row of Plastic : Single Row, Dual Row
Current Rating : 3A/pin
Operating Temperature : -65 to +105°C
Terminal Material : Phosphor bronze
Insulator Material : LCP (UL94V-0), black
Processing Temperature range : -65 to +240°C
Contact : Plated with 30u" thick gold in localized area and 150u" thick tin-lead in solder area over 50u-inch minimum thicknickel underplate
Insertion Force : 80 ± 15g with 0.64 square pin
Withdrawal Force : 50 ± 15g with 0.64 square pin
Number of Contacts : 6~80 PINS
ISO Certification : ISO9001, ISO14000
Rohs Compliance : Yes
Material : PBT, PA46, PA6T, PA9T, LCP
Packaging Details : Our standard packaging is plastic tray at first then put into carton box, also able to be customized by needs.
We offer ODM and OEM services, colors are flexible.
Quality Assurance :
Sincere State Electronic is a professional international manufacturer with more 20 years experience. Main products are wire to board connectors,wire to wire connectors, wire harness, cable assemblies and connector tooling/model development manufacturing. And its products are compatible with West Europe, the North United States, Japan, South Korea, Middle-East and other international brands connectors.
