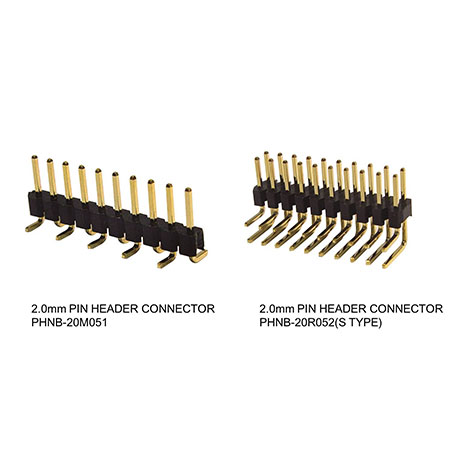

2 mm Pin Header

Item No.:

PHNB-20X05X-XXXX - 2.0 Pin Header

Supplier Details

Country: Taiwan

State: TAIWAN (R.O.C)

City: New Taipei City 235

Address: 4F., No. 123, Lide St., Zhonghe Dist.

TEL: +886-2-82276428

Fax: +886-2-82276427

Online Showroom: 93 Products

Application : PIN HEADER CONNECTOR
Mostly used inside equipment, rather than being used as a connector on the outside of the device.
Electronic Products, Industrial Computers, Aftermarket parts, Communication Systems etc.
Solder Type : SMT / Straight / Right Angle / J Type
Row of Plastic : Single Row, Dual Row
Current Rating : 1A
Dielectric Withstanding : AC 500V/minimum
Operating Temperatures : -40 to 105°C
230°C for 30 to 60 seconds (260°C for 10 seconds)
Terminal Material : Brass
Insulator Material : Nylon-6T (UL94V-0)
Contact : Plated with 30u-inch thick gold in localized area and100u-inch minimum thick tin-lead in solder area over 50u-inchminimum thick nickel under plating
No. of PINS : 4-80 PINS
Rohs Compliance and ISO Certification : ISO9001, ISO14000
Material : PA6T, LCP, PBT, PA46, PA9T
Packaging Details : Standard packaging is plastic tray at first then put into carton box, but accept any special requirements.
Quality Assurance :
Sincere State Electronic is a professional international manufacturer with 20 years experience. Main products are wire to board connectors,wire to wire connectors, wire harness, cable assemblies and connector tooling/model development manufacturing. And its products are compatible with Europe, the United States, Japan, Korea and other international brands connectors.
