1 mm Pin Header

Item No.:

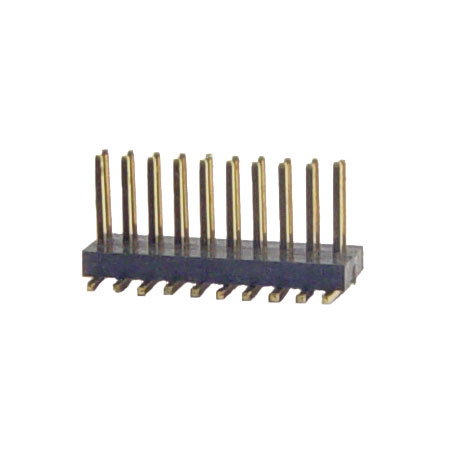

PHNB-10M032-XXXX - 1.0mm Pin Header

Supplier Details

Country: Taiwan

State: TAIWAN (R.O.C)

City: New Taipei City 235

Address: 4F., No. 123, Lide St., Zhonghe Dist.

TEL: +886-2-82276428

Fax: +886-2-82276427

Online Showroom: 93 Products

Application : PIN HEADER CONNECTOR
Mostly used inside equipment, rather than being used as a connector on the outside of the device.
Electronic Products, Aftermarket parts, Industrial Computers, Communication Systems etc.
Solder Type : SMT
Current Rating : 1.0A
Insulator Resistance : 1,000MΩ minimum
Contact Resistance : 20mΩ maximum
Dielectric Withstanding : 500V AC/minute
Operating Temperatures : -40 to +105°C
Contact Material : Brass
Insulator Materials : High-temperature thermoplastic and glassfiber UL94V-0
Color : Black
Finishes : Gold, Tin and duplex-plated
Standard : Gold flash all over
Duplex Plating : Gold-plated on contact area / Tin on solder area
Row of Plastic : Dual Row
SMT Type PCB Connector with Operating Temperature of -40 to +105°C
No. of Contact : 4~100 PINS
Rohs Compliance and ISO Certification ( ISO9001 and ISO14000 )
Material : PA6T, PA9T, LCP, PBT, PA46
General Packaging : Plastic tray and carton box, but accept any special requirements.
Quality Assurance :
Sincere State Electronic is a professional international manufacturer with 20 years experience. Main products are wire to board connectors,wire to wire connectors, wire harness, cable assemblies and connector tooling/model development manufacturing. And its products are compatible with Europe, the United States, Japan, Korea and other international brands connectors.
