Pile loop cut knitting machine
| Item No.: | 3-1.SDG-C |
Supplier Details
Country: Taiwan
City: Taipei city 328
Address: NO.132 Wu Kang Rd., wuku Hsiang,
TEL: +886-2-22997117
Fax: +--
Online Showroom:
22 Products

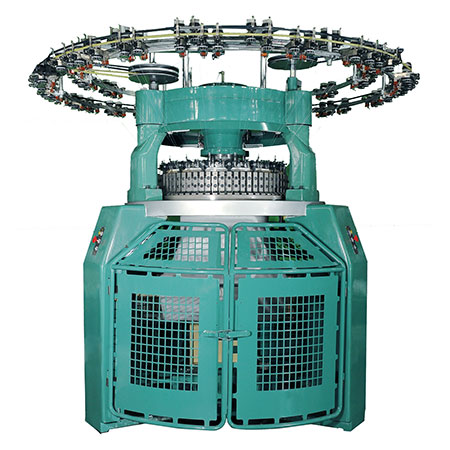

SDG-C Pile loop cut knitting machine also name high pile knitting machine.
The advantage of this machine is to cut the loop directly on the machine during knitting process.
It efficiently reduces the wastage of yarn and greatly save the production cost.
Range of pile loop length is available as follow:
Features:
■ MORE PRODUCTION:
Sunda R&D team develop high feeder pile loop cut machine. Successfully increase the production from approx. 90kgs to 240kgs.
■ MORE EFFICIENCY:
Equip Coating Knife, triple the cutting knife life time and make the production more efficiency.
Loop is cutting evenly therefore can save one time shearing process.
■ MORE APPLICATION:
- STRUCTURE: By arranging dial needle and cylinder knife, various high pile structure* can be knit on the machine.
- YARN: Various kind of yarn can knit and will result different fabrics effect.
- AFTER FINISHING PROCESS: Same fabrics passing different after finishing process, will come out different effect.
*Structure will affect the pile density and texture.
Option:
■ Lycra feeding unit: It can be installed on this machine to make high quality elastic fabrics as an optional part.
■ Long Pile: It is available for more than 50 -65mm pile loop length.
Fabric
■ This pile loop cut knitting machine is capable of producing:
Coral, vermicelli, pearl attraction, snow, ice crystal, plush, rice flour, peacock, fireworks, upright feather velvet after dyeing and finishing process.
Application:
■ Blankets, carpets, Mink fabrics, Faux fur, bathrobe, clean cloth, toy, home textile and etc.
Specification:
*FEEDER COMPOSITION (3 FEEDER PER UNIT):
The advantage of this machine is to cut the loop directly on the machine during knitting process.
It efficiently reduces the wastage of yarn and greatly save the production cost.
Range of pile loop length is available as follow:
- SHORT PILE :
- （16 ~ 36mm）
- MEDIUM PILE :
- （36 ~ 50mm）
Features:
■ MORE PRODUCTION:
Sunda R&D team develop high feeder pile loop cut machine. Successfully increase the production from approx. 90kgs to 240kgs.
■ MORE EFFICIENCY:
Equip Coating Knife, triple the cutting knife life time and make the production more efficiency.
Loop is cutting evenly therefore can save one time shearing process.
■ MORE APPLICATION:
- STRUCTURE: By arranging dial needle and cylinder knife, various high pile structure* can be knit on the machine.
- YARN: Various kind of yarn can knit and will result different fabrics effect.
- AFTER FINISHING PROCESS: Same fabrics passing different after finishing process, will come out different effect.
*Structure will affect the pile density and texture.
Option:
■ Lycra feeding unit: It can be installed on this machine to make high quality elastic fabrics as an optional part.
■ Long Pile: It is available for more than 50 -65mm pile loop length.
Fabric
■ This pile loop cut knitting machine is capable of producing:
Coral, vermicelli, pearl attraction, snow, ice crystal, plush, rice flour, peacock, fireworks, upright feather velvet after dyeing and finishing process.
Application:
■ Blankets, carpets, Mink fabrics, Faux fur, bathrobe, clean cloth, toy, home textile and etc.
Specification:
|
MODEL |
CYLINDER DIA. |
GAUGE/INCH |
FEEDER/INCH* |
|
SDG-C |
30" -36" |
14G~26G |
26": 12Fx3 30": 16Fx3 36": 20Fx3 |
- 1st Feeder: Knit Loop
- 2nd Feeder: Knit Ground
- 3rd Feeder: Cut Loop
