Phillips Pan Head - PEEK Inch Screws

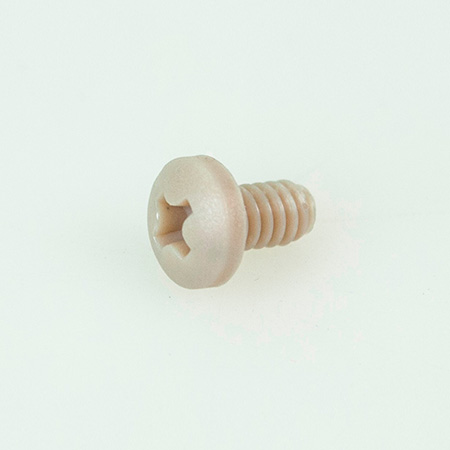

Phillips Pan Head

Item No.: PEEK Inch Screws
Supplier Details
Country: Taiwan
City: New Taipei City 23869
Address: NO.31, Gong-Sing-ST., Shulin Dist
TEL: +886-8688-8999
Fax: +886-8688-8998
Online Showroom: 49 Products
Super Material- PEEK.
PEEK is one of the highest performance thermoplastics, its chemical resistance is excellent and can operate at high temperatures, retaining its excellent mechanical properties at continuous-use temperatures up to 250°C (482°F); with its outstanding features would allow PEEK to replace metal in severe end-use environments.

PEEK screws Inch (ANSI Standard) application field:
  •  Light Weight
  •  used in all kinds of application when you want to reduce the product weight
  •  Excellent Chemical Resistance
  •  suitable for semi-conductor/chemical related applications
  •  High Heat Resistance
  •  in harsh environment for easy maintenance
  •  Low Outgassing
  •  for applications where metal products not allowed
  • Insulation
  • especially for electronic applications

Sizes Available:
Phillips Pan Head Inch screws (ANSI standard):

  #04-40UNC 1/4"L

  #04-40UNC 5/16"L

  #04-40UNC 1/2"L

  #06-32UNC 1/4"L

  #06-32UNC 5/16"L

  #06-32UNC 3/8"L

  #06-32UNC 1/2"L

  #06-32UNC 5/8"L

  #08-32UNC 3/8"L

  #08-32UNC 1/2"L

  #08-32UNC 5/8"L

  #08-32UNC 3/4"L

  #08-36UNF 1/2"L

  #08-36UNF 3/4"L

  #10-24UNC 3/8"L

  #10-24UNC 5/8"L

  #10-24UNC 3/4"L

  #10-24UNC 1"L

  #10-32UNF 3/8"L

  #10-32UNF 1/2"L

  #10-32UNF 5/8"L

  #10-32UNF 3/4"L

  #10-32UNF 1"L

  1/4"-20UNC 3/4"L

  1/4"-20UNC 1"L

  1/4"-28UNF 3/4"L

  1/4"-28UNF 1"L

  1/4"-28UNF 1-1/2"L


For more PEEK Screws Inch size, please send enquiry to check stock availability.

Link Upon carried an extensive stock of plastic fasteners.  From small machine screws to large hex screws, with in-house tooling, we are confident to meet your fastener needs.

Various screw head type such Hex Head Bolts, Socket Cap Screws, Pan Head Screws, Flat head Screws are in stock upon request.  Please visit our products page more details and contact us freely.
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Phillips Pan Head

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
