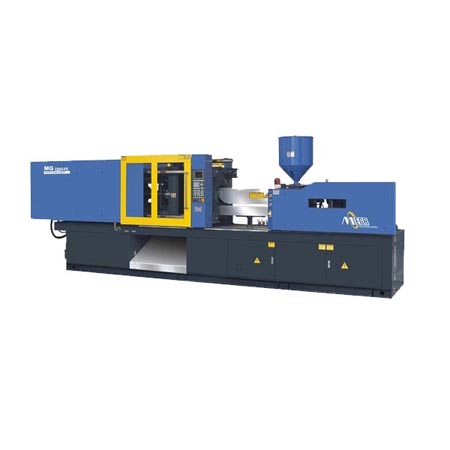

PE Cap Injection Molding Machine - SAETB-2680

PE Cap Injection Molding Machine

Item No.: SAETB-2680
Supplier Details
Country: China
State: Guangdong
City: Shenzhen
Address: Chegongmiao
TEL: +86-755-1234567
Fax: +86-755-1234567
Online Showroom: 226 Products
SPECIFICATION SAETB-2680 A B C INJECTION UNIT Screw Diameter mm 55 60 65 Screw L/D Ratio L/D 21.8 20 18.4 Shot Size (Theoretical) cm3 598 712 836 Injection Weight(PS) g 538 641 752 Injection Rate g/s 240 285 334 Plasticizing Capacity g/s 38 45 52 Injection Pressure Mpa 200 168 143 Screw Speed rpm 0~190 CLAMPING UNIT Clamp Tonnage kN 268 Toggle Stroke mm 550 Space Between Tie Bars mm 570x570 Max. Mold Height mm 600 Min. Mold Height mm 230 Ejector Stroke mm 150 Ejector Tonnage kN 65 Ejector Number Piece 9 OTHERS Max. Pump Pressure Mpa 16 Pump Motor Power kW 30 Heater Power kW 14.90 Machine Dimension(LxWxH) m 6.1x1.5x2.2 Machine Weight t 8.0 Hopper Capacity L 50 Oil Tank Capacity L 580
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

PE Cap Injection Molding Machine

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
