PDV Pneumatic Seals
| Item No.: | PDV |
Supplier Details
Country: Taiwan
City: Nantou County
Address: No. 336, Gongye Rd., Nantou City
TEL: +886-49-2255011
Fax: +886-49-2250035
Online Showroom:
47 Products
Product Description

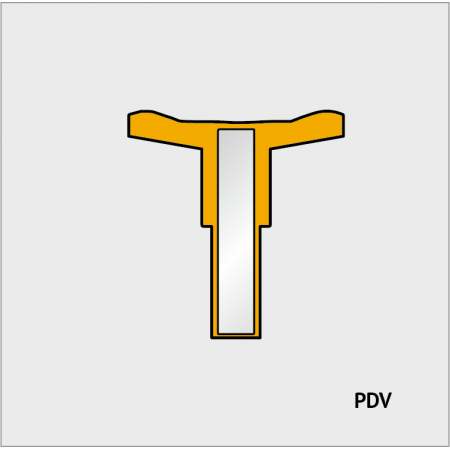

The PDV Pneumatic Seal is a two-way seal that is made out of both NBR and metal. It is designed to reduce friction while increasing stability. This seal can be a stand-alone seal, meaning it doesn’t need to match the other seals and can be installed on the piston groove separately. The PDV is mostly used in steel and aluminum pneumatic cylinders.
Material
NBR
FKM
Product Advantages
Application
Steel and aluminum pneumatic cylinder.
Operating Conditions
Surface Roughness
The PDV Pneumatic Seal is a two-way seal that is made out of both NBR and metal. It is designed to reduce friction while increasing stability. This seal can be a stand-alone seal, meaning it doesn’t need to match the other seals and can be installed on the piston groove separately. The PDV is mostly used in steel and aluminum pneumatic cylinders.
Material
NBR
FKM
Product Advantages
- Good media resistance
- Excellent wear resistance
- Low frictional resistance
- Wide operating temperature range
- Very good static and dynamic tightness
- Low assembly height of the complete piston enables short cylinder designs.
Application
Steel and aluminum pneumatic cylinder.
Operating Conditions
| Material | NBR | FKM |
| Pressure | ≦10 Mpa | ≦10 Mpa |
| Speed | ≦0.5 m/s | ≦0.5 m/s |
| Temperature Range | -40°C , +100°C | -25°C , +200°C |
Surface Roughness
| Sliding Surface | |
| Ra | 0.1~0.8 µm |
| Rz | 0.4~3.2 µm |
