PDC Pneumatic Seals
| Item No.: | PDC |
Supplier Details
Country: Taiwan
City: Nantou County
Address: No. 336, Gongye Rd., Nantou City
TEL: +886-49-2255011
Fax: +886-49-2250035
Online Showroom:
47 Products
Product Description

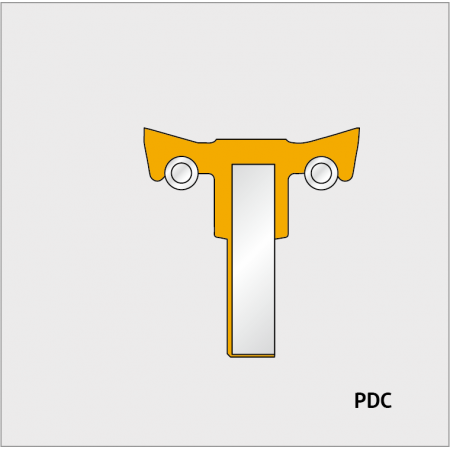

The PDC Pneumatic Seal is a two-way seal that can be used in both pneumatic and hydraulic settings. It is made of NBR, metal, and a spring. The spring is used to provide added radial force, and the PDC material maintains a good seal in low pressure settings. The PDC Pneumatic Seal is mostly used in short stroke, low pressure hydraulic cylinder and pneumatic cylinder.
Material
NBR
Product Advantages
Application
Short stroke, low pressure cylinder and pneumatic cylinder.
Operating Conditions
Surface Roughness
The PDC Pneumatic Seal is a two-way seal that can be used in both pneumatic and hydraulic settings. It is made of NBR, metal, and a spring. The spring is used to provide added radial force, and the PDC material maintains a good seal in low pressure settings. The PDC Pneumatic Seal is mostly used in short stroke, low pressure hydraulic cylinder and pneumatic cylinder.
Material
NBR
Product Advantages
- Good media resistance
- Excellent wear resistance
- Low frictional resistance
- Wide operating temperature range
- Very good static and dynamic tightness
- Low assembly height of the complete piston enables short cylinder designs.
- Good sealing at low pressures
Application
Short stroke, low pressure cylinder and pneumatic cylinder.
Operating Conditions
| Material | NBR |
| Pressure | ≦10 Mpa |
| Speed | ≦0.5 m/s |
| Temperature Range | -40°C , +100°C |
Surface Roughness
| Sliding Surface | |
| Ra | 0.1~0.8 µm |
| Rz | 0.4~3.2 µm |
