Passive POE Injector - PPSE001

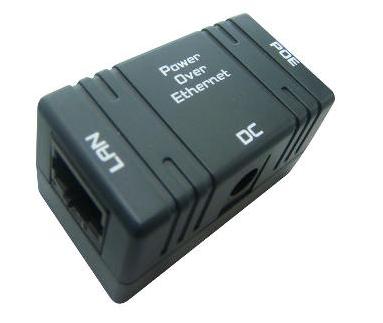

Passive POE Injector

Item No.: PPSE001
Supplier Details
CT Links
Country: Taiwan
City: Taichung City
Address: 1F No.2-3, Xinxing Rd., Beitun Dist.,
TEL: +886-4-24264758
Fax: +886-4-24264757
Online Showroom: 12 Products
FEATURES Application for IP Camera, Wireless AP, IP Phobe and other IP base devices Pssive POE Easy Installation   SPECIFICATIONS  Category Pins: Pins 1/2 & 3/6 for data Pins 4/5 & 7/8 for power Ethernet Cable: Data rate: 10/100 Mbps TIA/EIA 568B-2 Connector: RJ-45 Input Voltage: 6V-57V Current Output: 800mA Max Dimensions: 49mm X 27mm X 23.5mm Operating Temperature: 0°C~50°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~80%RH
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Passive POE Injector

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
