Tissue Packaging Machine
| Item No.: | AN-84050 |
Supplier Details
Country: Taiwan
City: New Taipei City 24257
Address: No. 43, Jianguo 1st., Rd., Xinzhuang Dist.
TEL: +886-2-29085266
Fax: +886-2-29086355
Online Showroom:
51 Products

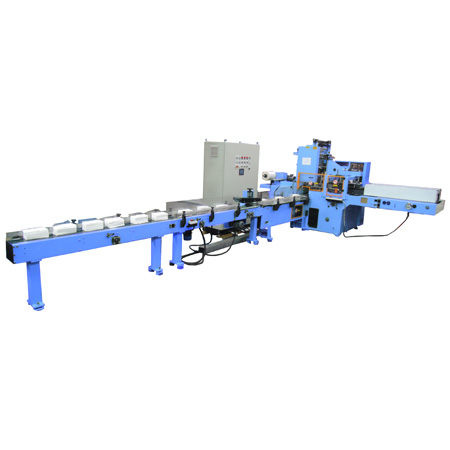

Paper Napkin & Facial Tissue Wrapping Machine
Model No.: AN-84050
Packing size: 75~165(L) x 115~330(W) the distance between 2 sides of lateral sealing x 50~140(H)/mm
Wrapping speed: 25-50 packs/min.
Film roll diameter: 350mm (Max.)
Wrapping material: CPP, PP ( 35~40μm), PE ( 40 μm up)
Character:
Model No.: AN-84050
Packing size: 75~165(L) x 115~330(W) the distance between 2 sides of lateral sealing x 50~140(H)/mm
Wrapping speed: 25-50 packs/min.
Film roll diameter: 350mm (Max.)
Wrapping material: CPP, PP ( 35~40μm), PE ( 40 μm up)
Character:
- To adopt angle orientation controller and encoder for the purpose to ensure the right position of contents.
- Touch panel central control to display the machine adjustment, dimensions change and trouble occurrence.
- Auto film stops when no packing content to avoid wasting.
- With heat sealing device & flap sealing folding plate.
- Film length control & registered mark tracing are achieved by the coordination between photo sensors and electric servo mechanism.
- Compressing device together with up/down conveying belt will ensure the good control of wrapping process.
- Conveyor with pusher for paper stacks feeding.
- Wonderful design to gain the lowest waste and the highest yielding rate.
- Chain conveyor prior to wrapping machine.
- Feeding Conveyor.
