Ozone Generator
Item No.: | CTO |
Supplier Details
Country: Taiwan
City: Pingtung County 900
Address: No.2,S. 1st Rd., Pingtung City
TEL: +886-8-7511181
Fax: +886-8-7513525

Online Showroom:
64 Products
Ozone Generator

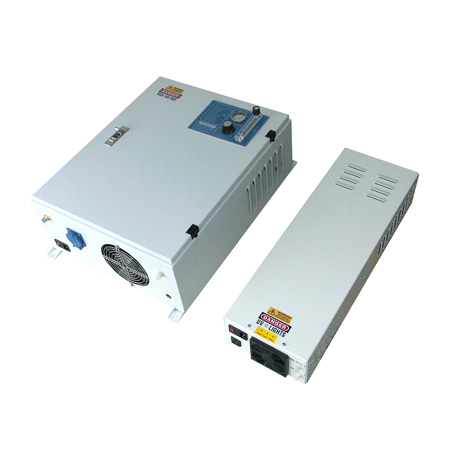

CTO Series Ozone Generator
ROTEK CTO Series ozone generator utilize corona discharge (CD) ozone generating technologies and pressure swing adsorption (PSA) oxygen concentration technologies.
ROTEK CTO Series utilize module design. CD Ozone generation module made from high temperature and high voltage resistance quartz glass tube, SS 316 L tube, Kynar (PVDF) end cup, Viton "O" ring, aluminum heat sink and individual fused high frequency high voltage power supply for longer reliable use. PSA oxygen concentration module made from aluminum tube molecular sieves bed, molecular sieves select from world main manufacturer, motorized distribution valve & ceramic valve seat for longer reliable use.
Product Features
Product Specifications
CTO Series Ozone Generator
ROTEK CTO Series ozone generator utilize corona discharge (CD) ozone generating technologies and pressure swing adsorption (PSA) oxygen concentration technologies.
ROTEK CTO Series utilize module design. CD Ozone generation module made from high temperature and high voltage resistance quartz glass tube, SS 316 L tube, Kynar (PVDF) end cup, Viton "O" ring, aluminum heat sink and individual fused high frequency high voltage power supply for longer reliable use. PSA oxygen concentration module made from aluminum tube molecular sieves bed, molecular sieves select from world main manufacturer, motorized distribution valve & ceramic valve seat for longer reliable use.
Product Features
- Oxygen concentrators feature professional rotating distribution valves for reliable and long service life.
- Extra oil-less pump synchronization socket outlet
- Adjustable flow meter indicates oxygen flow through systems
- 0 -100% ozone output variable
- Door switch, overheating switch
- Current overdraw circuit breaker and fuse(s)
- Module designed for easy service and maintenance
- Gray ABS engineering plastic enclosure
- Air cooled, wall mount
Models | CTO-10 | CTO-20 | CTO-30 | CTO-40 | CTO-60 | CTO-80 |
Ozone Production (g/H) | 10 | 20 | 30 | 40 | 60 | 80 |
Compress Air Feed Gas (L/min) | 16 | 16 | 16 | 16 | 16 | 16 |
Power Consumption (kw) | 0.12 | 0.26 | 0.36 | 0.48 | 0.68 | 0.88 |
Input Voltage | ||||||
Variable Control (%) | 0-100 | |||||
Extra air pump | YES | NO (equipped with compress air inlet | ||||
Installation | Wall Mount | Cabinet | ||||
Dimension (HxWxD) mm | 650x430x220 | 650x530x220 | 1060 x 650 x 450 | 1415 x 940 x 570 | ||
Enclosure | Powder Coating / SS | |||||
Weight (KG) | 30 | 35 | 80 | 90 | 100 | 110 |
