Online Time Recorder with Ethernet Interface

Introduction:

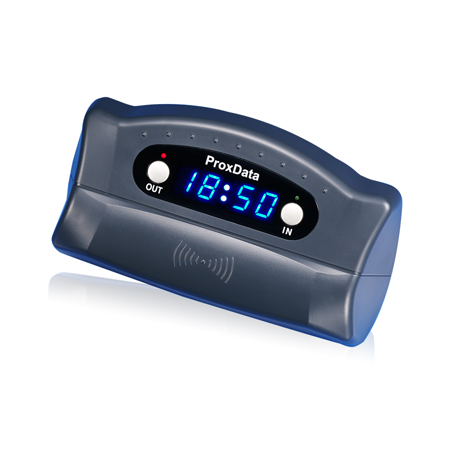

TR515E Ethernet-interfaced Time Recorder is simple to install and operate, this Time and Attendance terminal provides all the basic Time Recorder functionality in an attractive and cost-effective package.
Extremely versatile, TR515E terminal can be used as either a wall-mount or as a desktop device. An excellent viewing angle is provided in both orientations by rotating the unit 180 degrees.
Features:
Ethernet interface connected to Ethernet hub
Works on a standard TCP/IP network
Bright, high-contrast blue LED display shows time of day, last 4 digits of the ID-code and error messages
Approximately 8200 records storage capacity
Convenient Machine Number setup feature using IN and OUT buttons simplifies multi-terminal installation
Built-in Ring relay for external ring ( bell ) control
Daily bell schedule of up to 32 different entries
Built-in Magnetic Card, RFID or Mifare reader 13.56Mhz or Barcode reader
Two buttons for clocking IN and OUT
※ Specification is subject to change without notice.

Specifications:

Display	4 x 7-segment Blue light LED
Card Type	Magnetic Card Reader: ISO TK 2 RFID Card Reader: 125KHz, ASK Barcode Card Reader: Code 39 Mifare: ISO 14443A
Database Capacity	Approximately 8200 records
Interface	Ethernet , TCP/IP protocol
Bell table	Up to 32 entries
Bell relay	Max 1A, 12V
Mounting	Wall-mount or desktop
Power Supply	DC 9V, 500mA
Operating Temperature	0 ~ 55° C
Operating Rel. Humidity	5 ~ 95%
Dimensions	W 185 x H 110 x D 51 mm

Ordering information:
TR515EM - with Magnetic card reader
TR515ER - with RFID card reader
TR515ER-MF - with Mifare RFID card reader, 13.56Mhz
TR515EB - with LED Barcode card reader
TR515EF - with IR Barcode card reader
Also available for Felica and HID version
