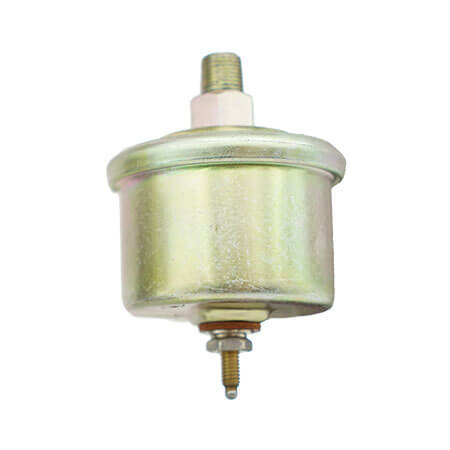

Oil Pressure Sensor
| Item No.: | LR001 |
Supplier Details
Country: Taiwan
City: Taipei City 104032
Address: 6F., No. 162, Sec. 2, Zhongshan N. Rd., Zhongshan Dist.
TEL: +886-2-25868767
Fax: +886-2-25868767
Online Showroom:
57 Products
Pressure sending unit sender
LR001
Application
Oil, fuel, diesel and pressure measurement
Features
1.100% Metal Case (not plastic)
2.100 psi
3.Input 0-100 psi
4.Thread: 1/8”-27 NPT
5.Wiring connector: water sealed quick disconnect. Mating connector and wire harness is included
6.Weight 55g
7.Working Temperature: -40ºC -+120ºC
8.IP class: IP67
9.Long-term stability: Less than 0.1% F.S/year;
10.Temperature Effect on Zero：
Typical：0.02%FS/ºC；
Maximum：0.05%FS/ºC
11.Temperature Effect on Sensitivity：
Typical：0.02%FS/ºC;
Maximum：0.05%FS/ºC
12.Shock Resistance：1000g;
13.Anti-Shock：≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)
14.Response Time：≤1ms;
15.Explosion-Proof Class：EN50051-1
