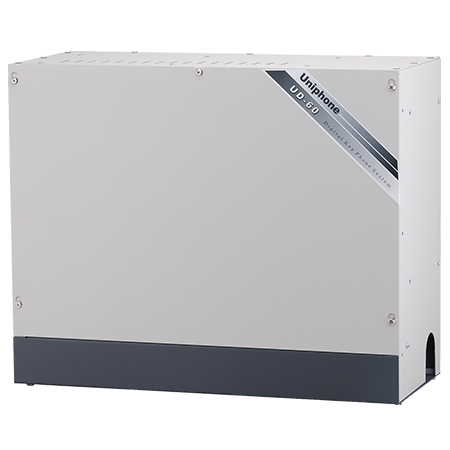

NURSE CALL SYSTEM
| Item No.: | UD-60CS+ |
Supplier Details
Country: Taiwan
City: Taiwan
Address: NO.25，chugong 3rd ln.,Renwu Dist,Kaohsiung city 814,Taiwan
TEL: +886-7-3742024
Fax: +886-7-3744659
Online Showroom:
34 Products
Specification:
Features:
■ Star architecture
This architecture will be avoided all the stations in the same ward malfunction by one faulty station. The patient unit will functioning even there’s a malfunctioned station in the same room.
■ Two-Way communication
Enable the patient and nurse talk to each other for initial understand of the call.
■ Adjustable calling/ talking/ paging volume
■ Remind alert for untreated calls
■ Diverse Calling Tone for nurse call and emergency call
■ Graphical Base Software (option)
Display in Bed-Column or Building Plan is available; call log shows calling time, answer time and event cancelled on master station; distinguish call event by different color; pop-up the patient’s profile after the master station answered the call; Untreated call log...
|
Capacity |
82 ports |
|
Power Source |
AC 110V〜240V, 50/60Hz±10% |
|
Max. Power Consumption (Exclud. Station) |
7W |
|
Max. DC Output Power |
50W |
|
External Back-up Battery |
24V/4 – 50AH |
|
Max. Battery Charge Current |
27. 6V/0.5A |
|
Communication |
Press-to-Talk, Handset, Handsfree |
|
Wiring |
2 wires Connection |
|
Dimension (cm) |
32 x 38.5 x 10.7 |
|
Net Weight (kg) |
2.2 |
|
Ambient Temperature |
5 – 45℃ |
|
Relative Humidity |
20 – 80 %RH |
■ Star architecture
This architecture will be avoided all the stations in the same ward malfunction by one faulty station. The patient unit will functioning even there’s a malfunctioned station in the same room.
■ Two-Way communication
Enable the patient and nurse talk to each other for initial understand of the call.
■ Adjustable calling/ talking/ paging volume
■ Remind alert for untreated calls
■ Diverse Calling Tone for nurse call and emergency call
■ Graphical Base Software (option)
Display in Bed-Column or Building Plan is available; call log shows calling time, answer time and event cancelled on master station; distinguish call event by different color; pop-up the patient’s profile after the master station answered the call; Untreated call log...
