Nozzles Misting Fan
| Item No.: | 10-2 |
Supplier Details
Country: Taiwan
City: Taichung
Address: 30-2, 31Th RD. Taichung Ind. Dist.
TEL: +886-4-23588168
Fax: +886-4-23588598
Online Showroom:
48 Products

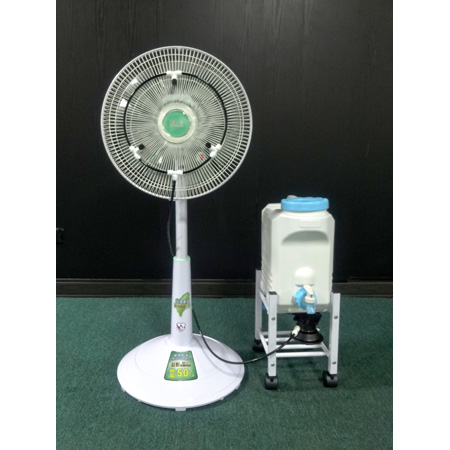

Item: 16 "Inverter Stand fans
Name: 2 nozzles Inverter Fog Machine
Item No.: TT02110A(220A)
Nozzle: 2 pc ∮0.2mm nozzle
Motor: ψ55mm DC brushless motor
Voltage: 110V (220V)
Power: 20W
consumption: 8-12W
Pressure: 25 Bars
Mist Particle: 90% less than 25μ
Water Flow: 50 cc/min
Pump Size: 120 (L) * 105 (W) * 100 (H) mm
Weight: 2.5 KGS
Made in Taiwan
Name: 10 liter Storage tank
Item No.: TT10S
Tank Size: 320 (L) * 200 (W) * 340 (H) mm
Rack Size: 245 (L) * 200 (W) * 255 (H) mm
Overall Size: 320 (L) * 200 (W) * 520 (H) mm
Tank capacity: 10 liters (2 nozzles can be used about 3 hours)
Carton size: 330 (L) * 210 (W) * 530 (H) mm / 1.3 '
Weight: 2.5 KGS
Made in Taiwan
Product Features:
1. nozzle using high-precision special durable plastic design, the service life of more than 100 times
higher than conventional nozzles, spray efficiency is much higher than 10 times more than traditional
metal nozzle.
2. The use of special materials and structural design, can adequately address the lime scale crystallization
and clogging problems. Nozzle use life over 10,000 hours. Nozzle is more than a year warranty.
3. Just use simple filters, no solid material water can be used. Groundwater or recycled water can be used,
dramatically reducing the cost of water, in full compliance with green energy needs.
4. The use of lower pressure 25Bar, can produce more than 90%, water mist particles below 25μ,
higher cooling efficiency.
5. The low energy consumption, the use of DC inverter motor, lightweight, high durability, energy
saving, more than 1,000 hours of continuous use.
6. Mining modular, quick plug connector design, 5 minutes to complete the installation.
7. nano nozzle, not only greatly enhance the effectiveness of fog, special design, nozzle clogging is
not easy to scale, using water only after simple filtration, can be long-term use, easy to damage,
dramatically reducing the use of water and maintenance costs.
8. Made in Taiwan
