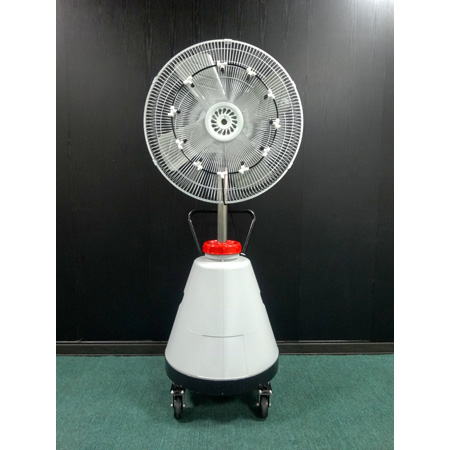

Item:            24 "speed swing industrial fans

Name:           10 nozzles Inverter Fog Machine
Item No.:       TT10110 (220)/24F(TT10220/24F)
Nozzle:          10 pc ∮0.2mm nozzles
Motor:           ψ80mm DC brushless motor
Voltage:         110V (220V)
Power:          425Walt
consumption:
Pressure:        28 ~ 32 Bars
Mist Particle:   90% less than 25μ
Water Flow:    250 cc/min
Pump Size:     120 (L) * 105 (W) * 100 (H) mm
Weight:          27.8 KGS

Name:            70 liter Storage tank
Item No.:        TT70S
Tank Size:       340(L)*230(W)*450(H)mm
Rack Size:       275(L)*230(W)*255(H)mm
Overall Size:    340(L)*230(W)*520(H)mm
Tank capacity: 70 liters (3 nozzles can be used about 4 hours)
Carton size:     350(L)*210(W)*530(H)mm/1.6’
Weight:          13.5 KGS
Made in Taiwan

Remarks:
8 nozzles fog machine installed in front of the 30 "fan, 10 nozzles fog machine  installed in front of
the 30 "fan, used in outdoor locations, or used in the poultry farm and pig farm, as ventilation and
cooling purposes, the effect is very good.
