Nozzles Misting Fan - 10-3

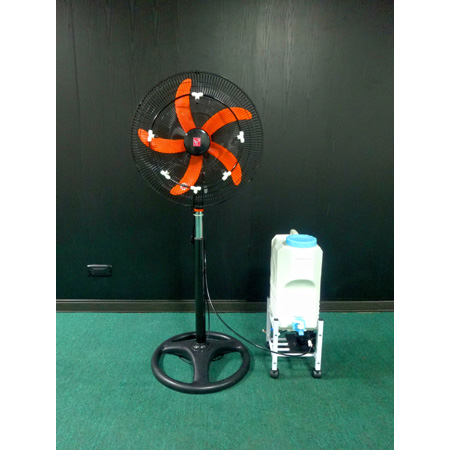

Nozzles Misting Fan

Item No.: 10-3
Supplier Details
Country: Taiwan
City: Taichung
Address: 30-2, 31Th RD. Taichung Ind. Dist.
TEL: +886-4-23588168
Fax: +886-4-23588598
Online Showroom: 48 Products
Item:           20 "speed swing industrial fans
Motor:          A/C Motor,90x48x30mm pure copper motor with fuse
Voltage:        110V 60Hz (220V 60Hz)
Power:          100W
Product size:   540(L)*510(W)*1270-1720(H)mm
Carton  size:   685(L)*155(W)*55(H)mm/2.21’
Weight:         11.5/12 KGS
Product Features:
5-leaf knife blade (ABS/AS)
120-spoke coating metal grill
Metal neck and switch box
3-speed rotary switch control
Height can be adjusted
Two flat pins plug
45cm plug power cord
12Hour timer
Base diameter: ψ510mm with 3 weight nuts
For L & R oscillation
Color: white, black
Origin: Taiwan

Name:           3 nozzles Inverter Fog Machine
Item No.:       TT03110A (220A)
Nozzle:          3 pc ∮0.2mm nozzle
Motor:          ψ55mm DC brushless motor
Voltage:        110V (220V)
Power:          20W
consumption:    8-12W
Pressure:       25 Bars
Mist Particle:  90% less than 25μ
Water Flow:     75 cc/min
Pump Size:      120 (L) * 105 (W) * 100 (H) mm
Weight:         2.5 KGS

Name:           20 liter Storage tank
Item No.:       TT20S
Tank Size:      340(L)*230(W)*450(H)mm
Rack Size:      275(L)*230(W)*255(H)mm
Overall Size:   340(L)*230(W)*520(H)mm
Tank capacity:  20 liters (3 nozzles can be used about 4 hours)
Carton size:    350(L)*210(W)*530(H)mm/1.6’
Weight:         3.5 KGS
Made in Taiwan


We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Nozzles Misting Fan

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
